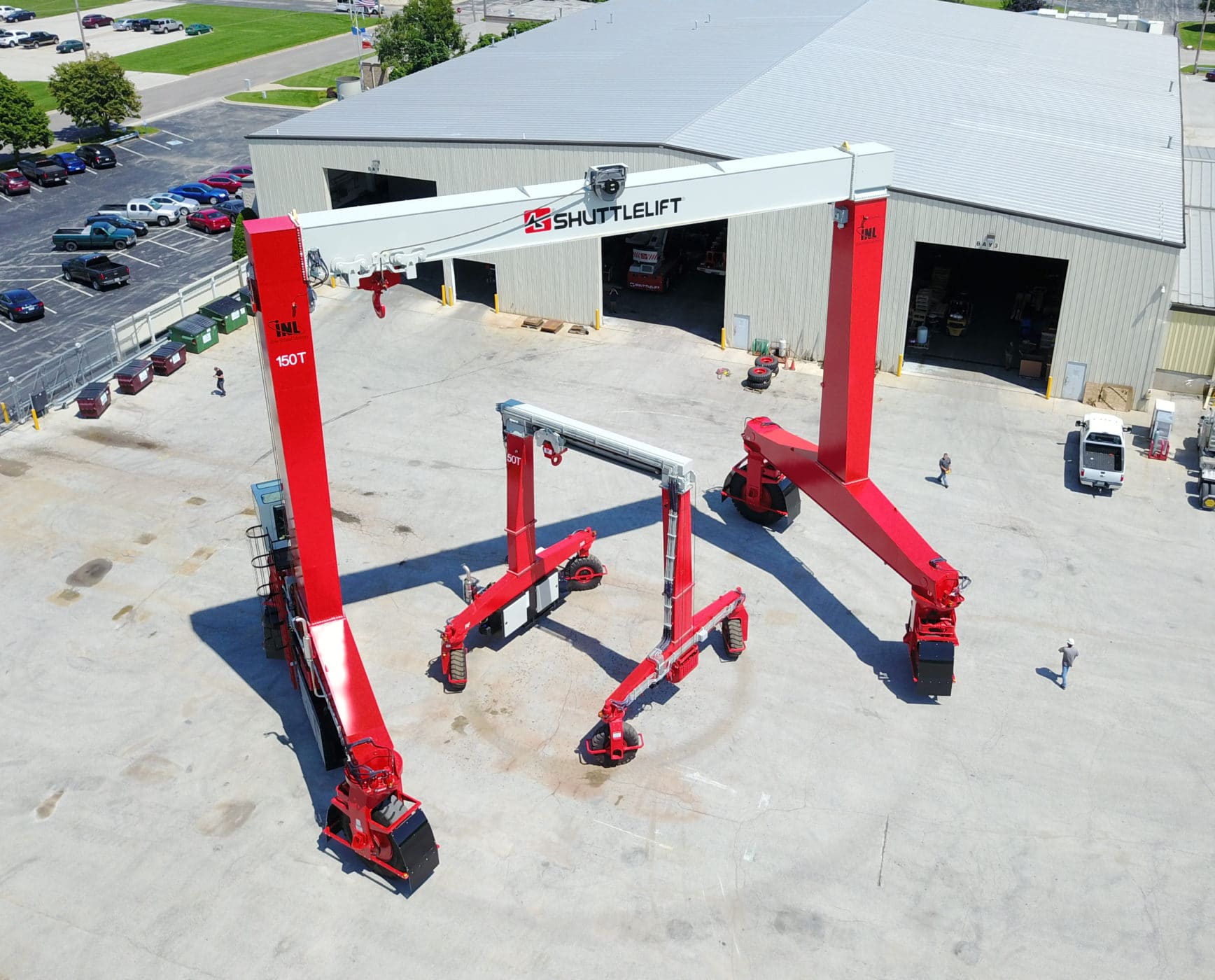

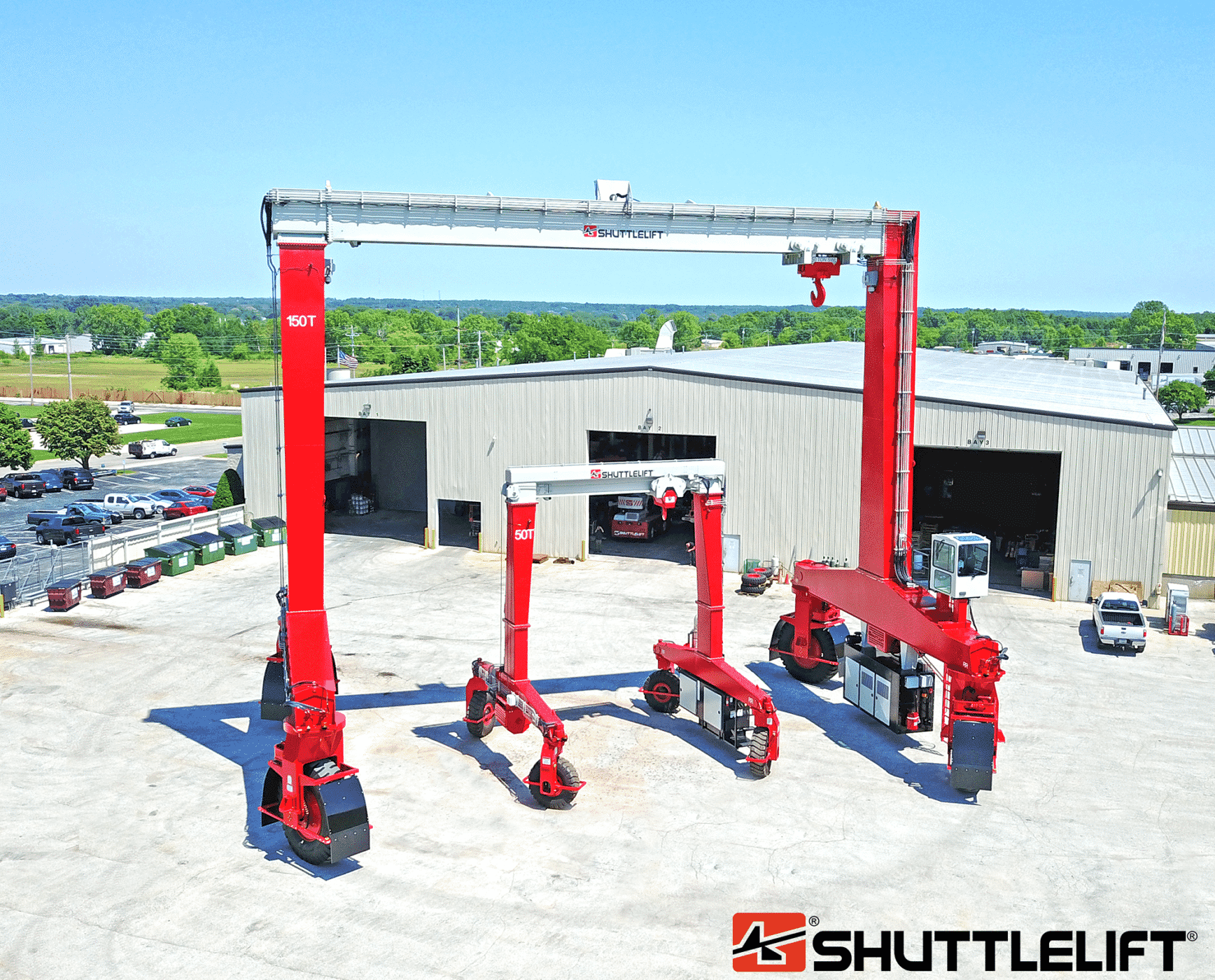

SB Series — Single-Beam Precision for Long and Irregular Loads

Built for Stability, Accuracy & Yard Maneuverability

The Shuttlelift SB Series is purpose-built for industries handling long-length, irregular, or difficult load profiles. The single-beam design, paired with a double-taper column structure, provides exceptional rigidity while maintaining agility in tight yard layouts.

Ideal for modular construction, steel fabrication, telecom structures, and industrial assembly, the SB Series delivers reliable, repeatable lifting performance under demanding conditions and the mobility cements its place as a preferred option to bridge cranes.

Key Features of the SB Series-

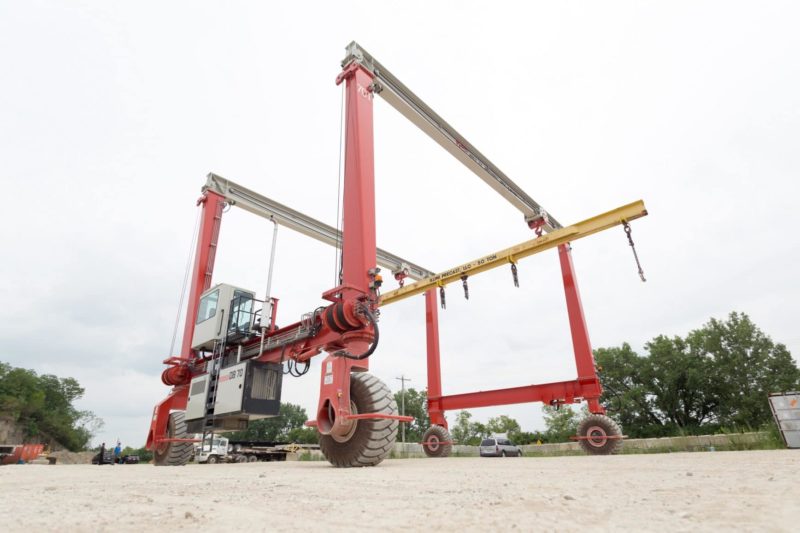

SINGLE beam rubber-tired gantry crane

Closed Loop-hydrostatic Drive System

With a closed loop system you never have to worry about sacrificing drive power to other machine functions and the hydrostatic system allows the operator unparalleled smooth fully proportional control.

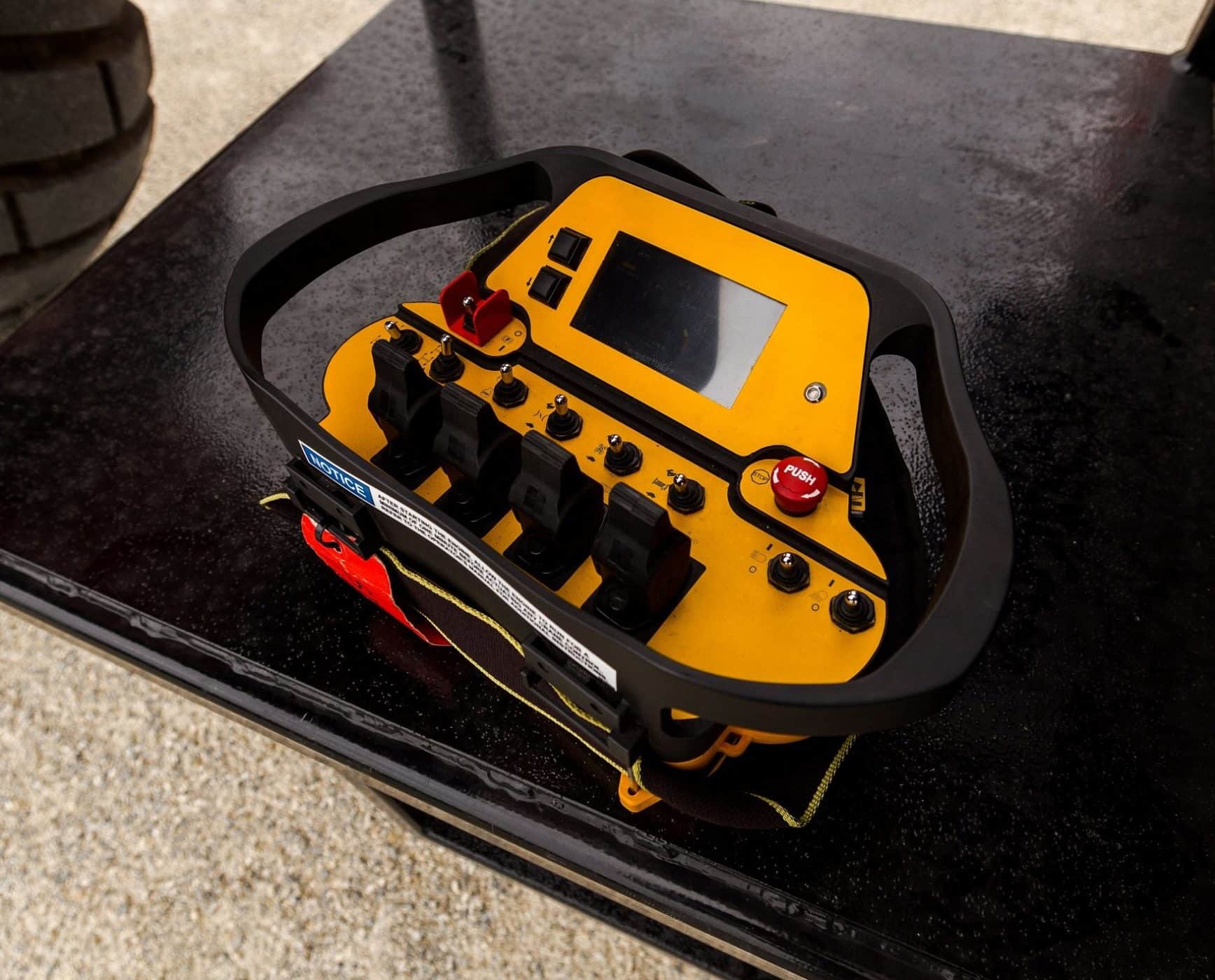

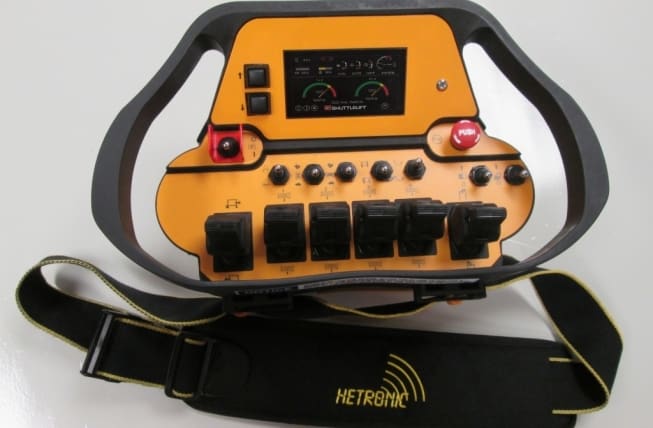

Wireless Remote Control Comes Standard

Shuttlelift’s Wireless Remote Control gives the operator maximum visibility by allowing the operator to be anywhere around the load, improving operational safety and reducing personnel needed for lifting operations.

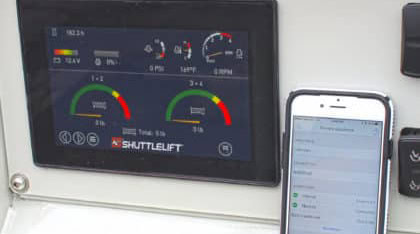

Remote Diagnostics

Shuttlelift’s intelligent remote diagnostics is designed to wirelessly transmit machine information directly to a smartphone or tablet – allowing an offsite technician to troubleshoot any issues and upload a new program if needed – all in the same session, saving our customers time and money.

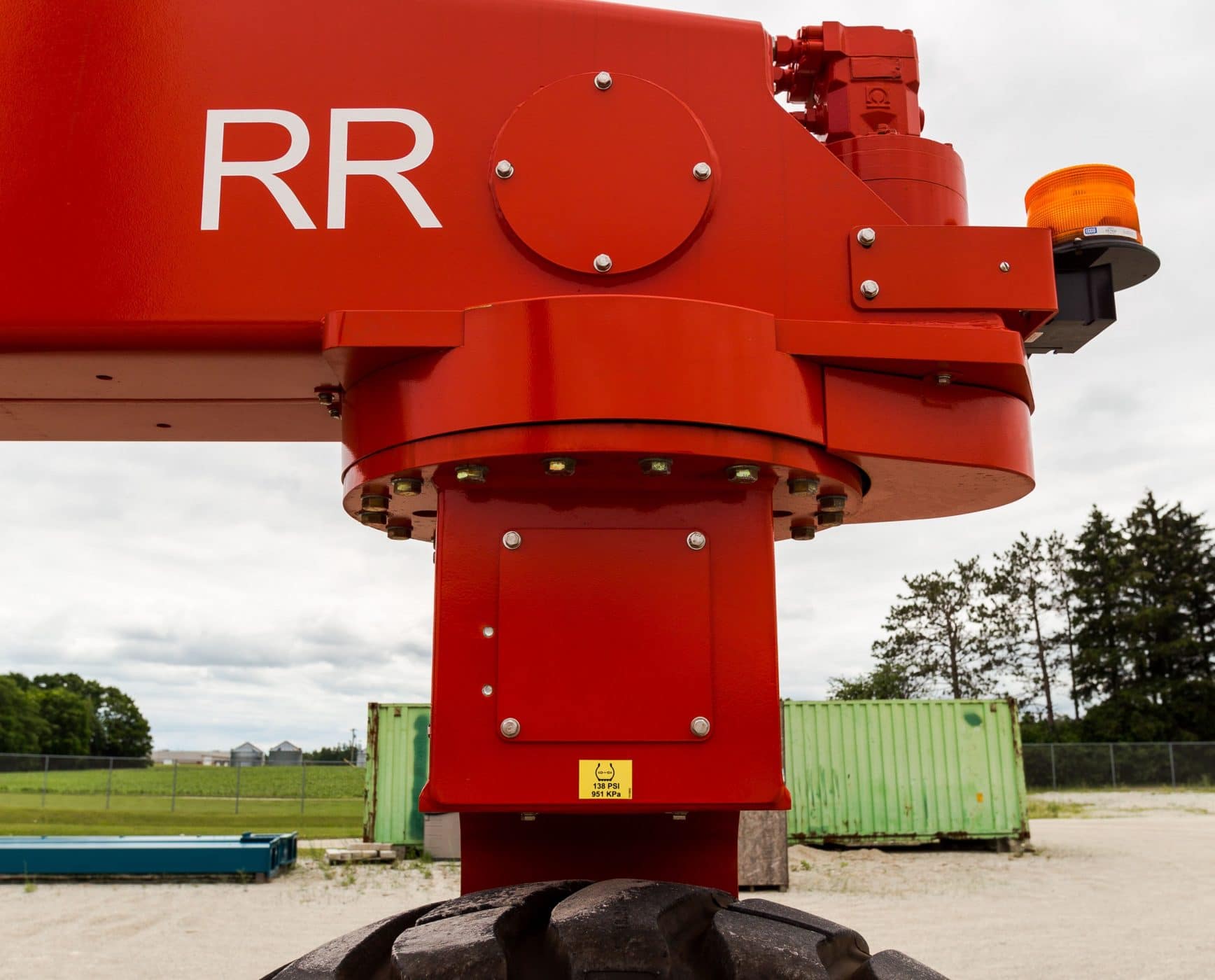

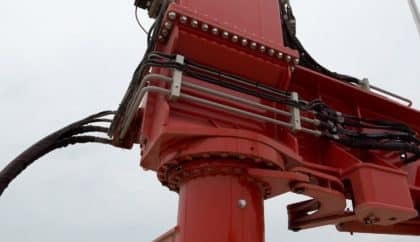

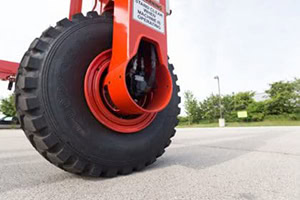

Steering Slew Bearing

The steering pivot of the crane utilizes a robust slew bearing which simplifies maintenance and service operations – reducing maintenance costs and increasing the life of your machine.

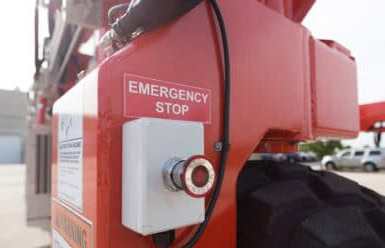

Emergency E-Stop Switch

Emergency Shutdown controls are located at each corner of the crane to allow ground personnel around the crane’s perimeter to stop the crane if unsafe conditions occur.

Travel Alarms and Strobe Lights

Everyone in the work area will know the Shuttlelift is engaged and moving with the flashing strobe lights and smart travel alarms that can adjust decibel levels depending on the surrounding noise.

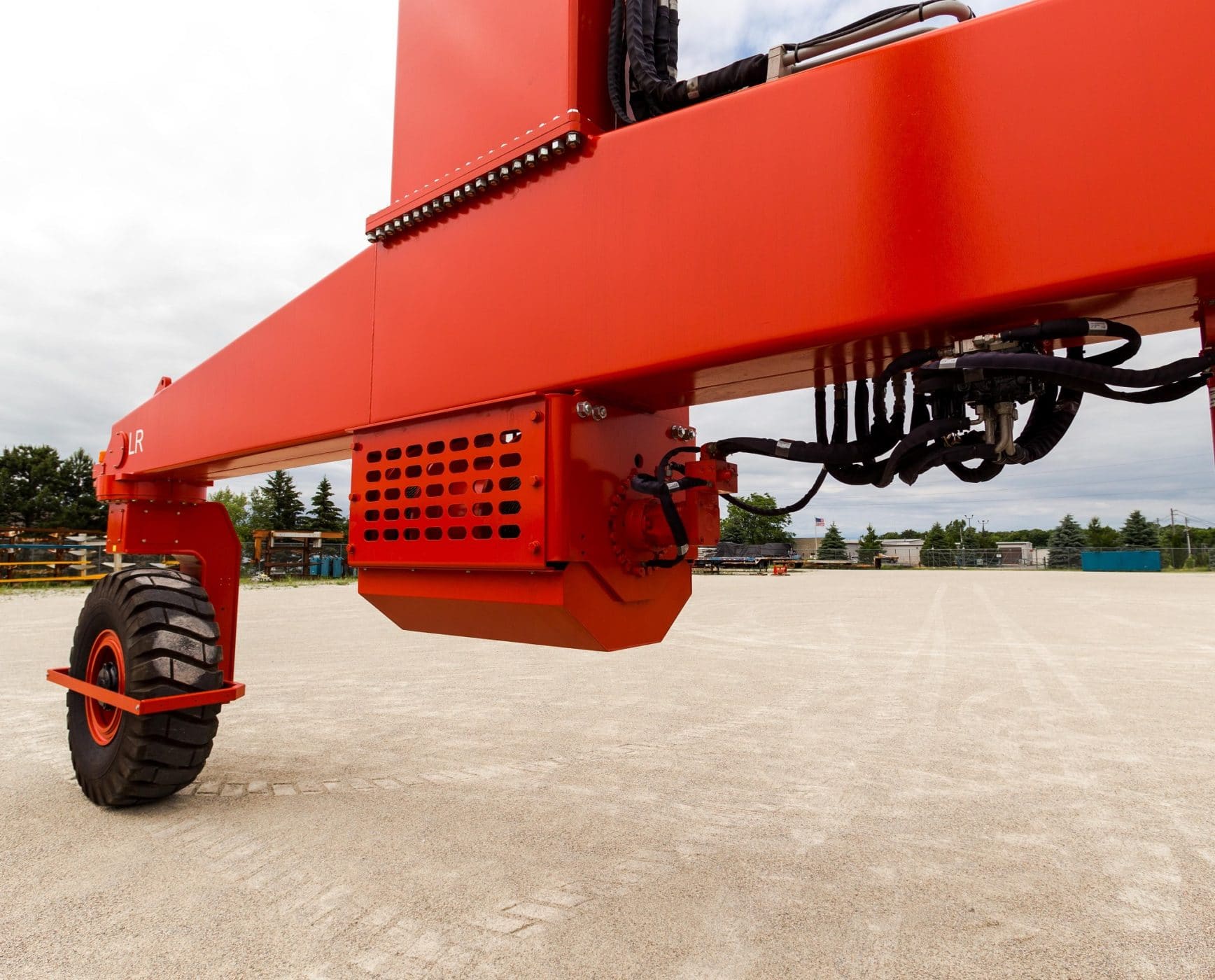

Low Mounted Hoists

With hoists mounted to the lower side beam, the operator can easily see the reeving of the wire rope and allows needed maintenance to be performed without the requirement of a man lift.

Cordura Hose Cover

All hoses are protected by a cordura covering preventing exposure to harsh environments and elements to extend the life of the hose.

Hydraulic Oil Cooler

The Hydraulic Oil Cooler maintains the hydraulic oil temperature allowing the crane to work more efficiently at high duty cycles and in harsh work environments maximizing component life.

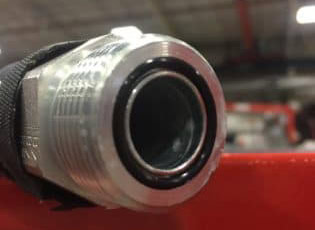

O-ring Face Seal Hydraulic Fittings

Most technologically advanced system available for mobile equipment in minimizing potential leaks at the connections

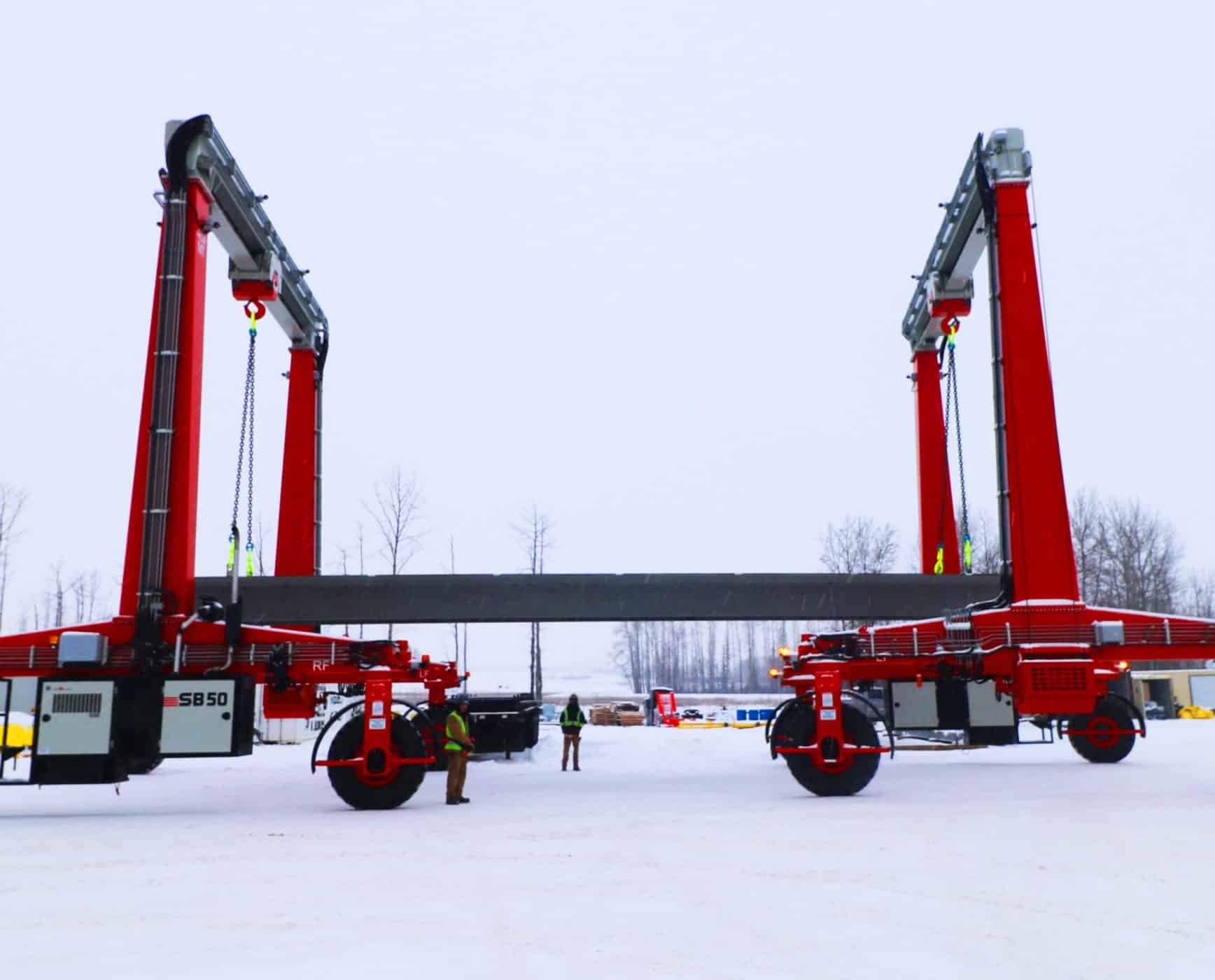

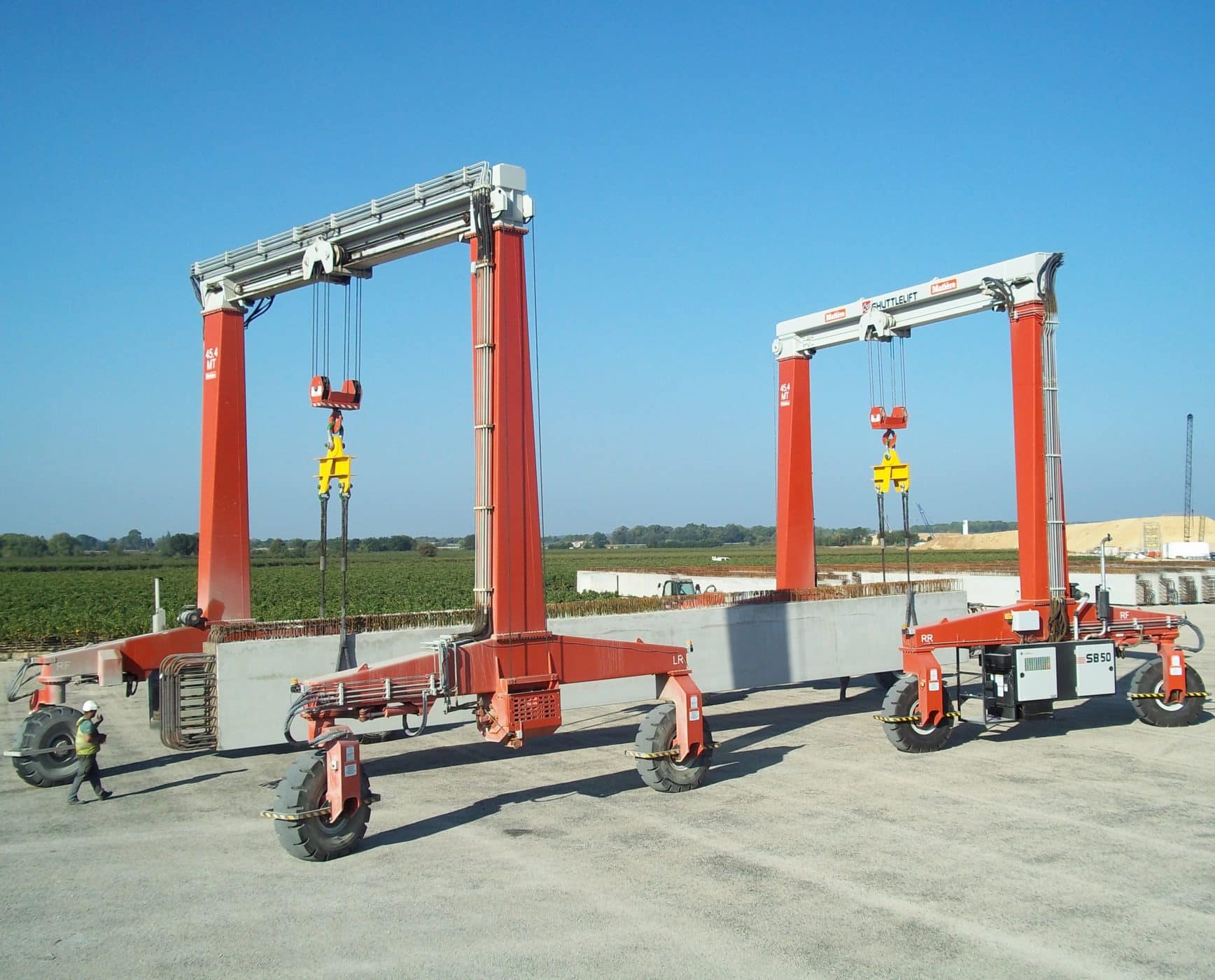

We ordered our SB50 to make dual lifts of larger bridge beams. It has performed just as we expected for those lifts, but it operates so quickly that we have discovered many other uses for our SB50. We have enjoyed it for over five years now and we look forward to many more years of use. Don Thomson, CPI of Tennessee

Optional Features & Customizations

Custom Height, Width

Shuttlelift modifies crane height and width to meet specific yard layouts and customer requirements.

All-Wheel Electronic Steering

Patented all-wheel steering provides maximum flexibility, maneuverability and precision handling in confined spaces. Modes include 2WS 90° Front, 2WS 90° Rear, Crab, Transverse, Carousel and Coordinate.

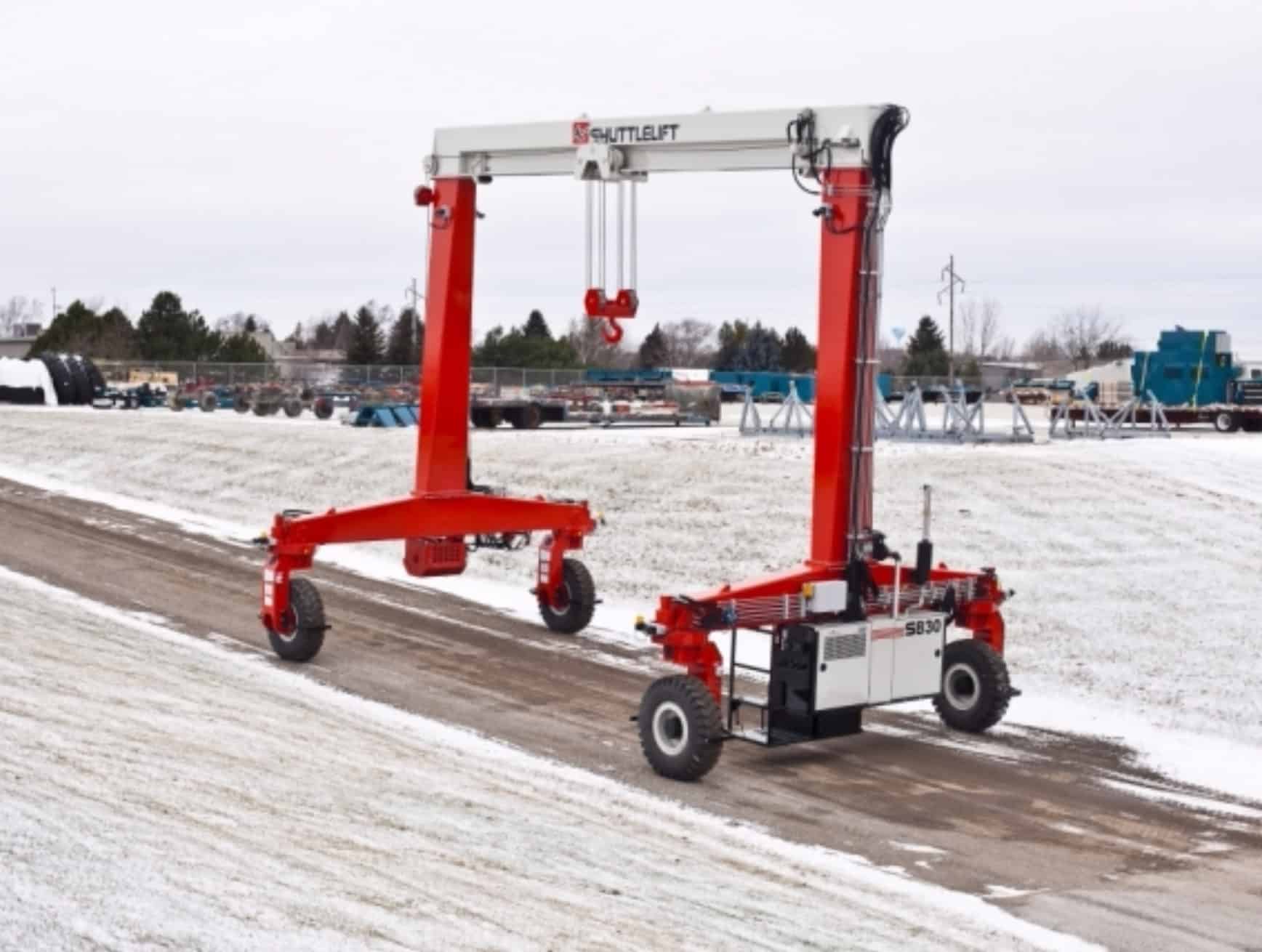

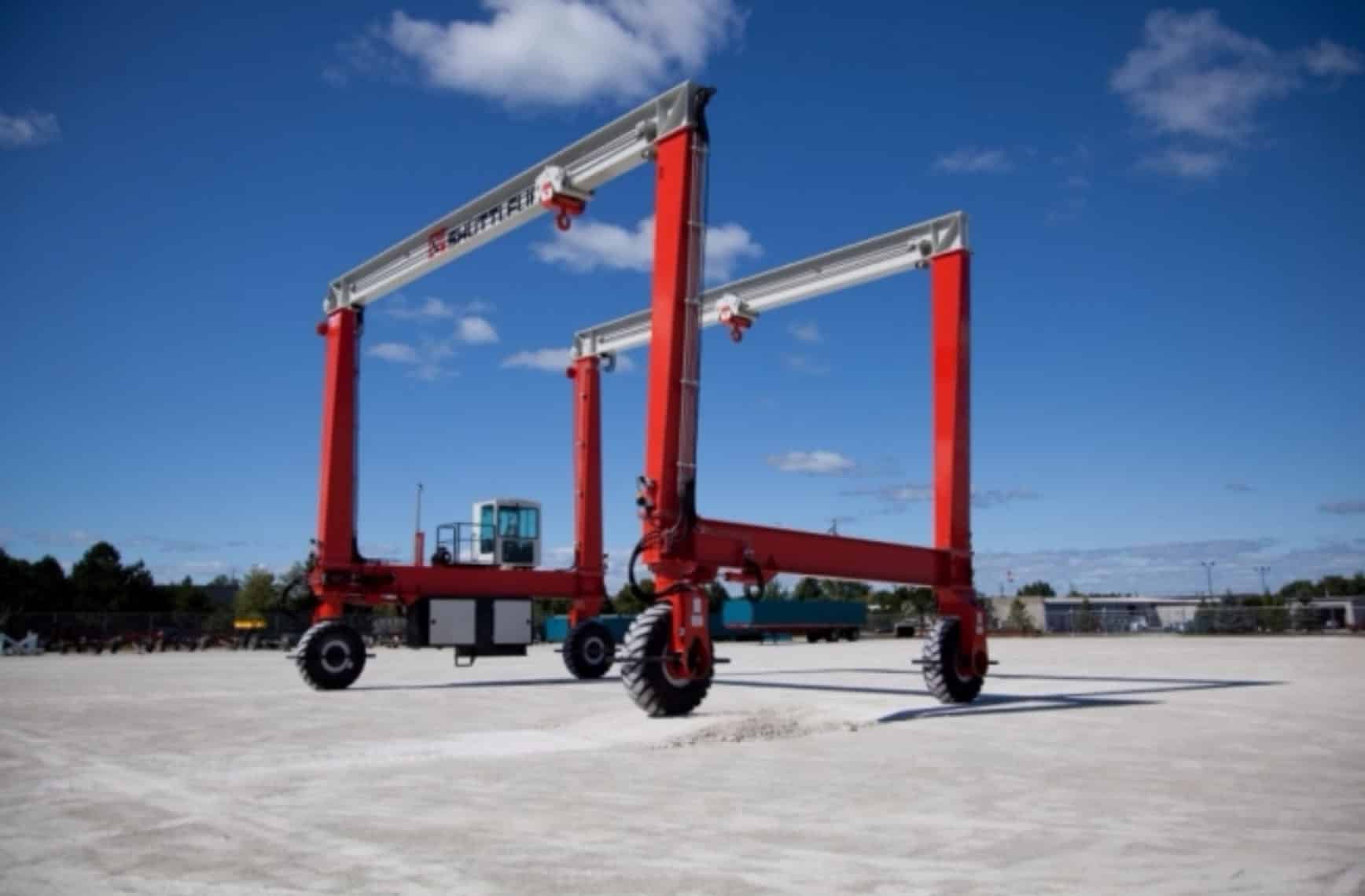

Increased Gradeability

Additional wheel motors allow Shuttlelift gantry cranes to travel over inclined or uneven surfaces.

Linkageless Steer

Eliminates steering linkage to reduce maintenance, wear parts and alignment effort while maintaining precision control.

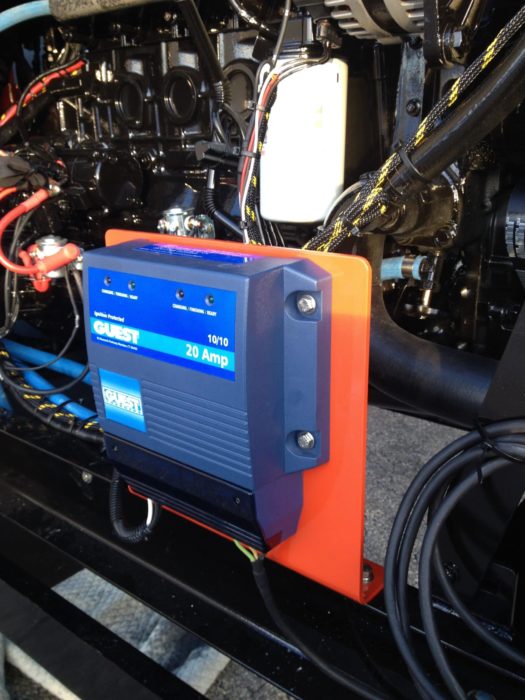

Cold Start Package

Includes engine block heater, hydraulic oil heater and 110-volt battery trickle charger for cold climate operation.

24-Volt Work and Drive Lights

Eight 24-volt lights illuminate work and travel areas to maintain productivity in low-light conditions.

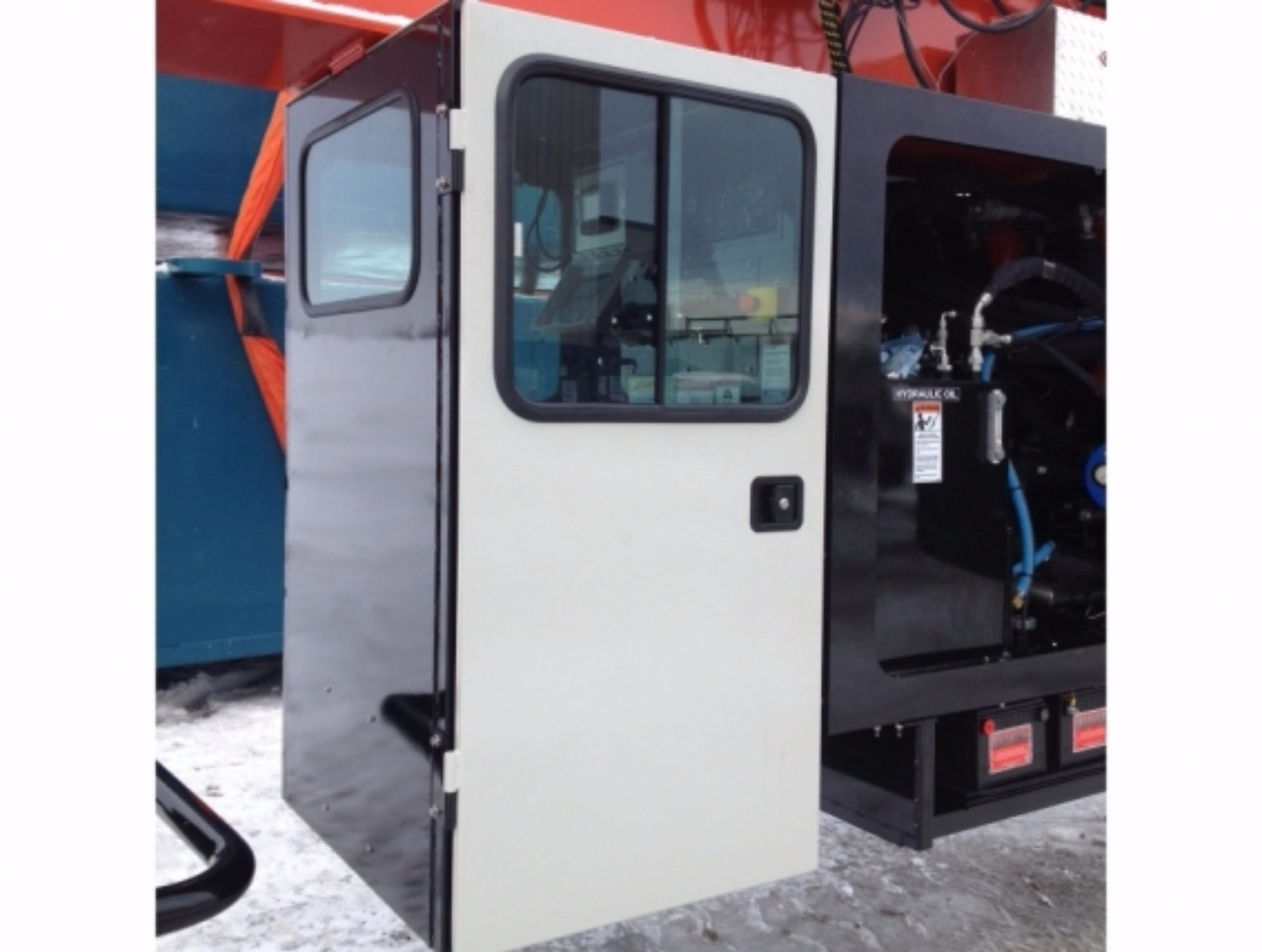

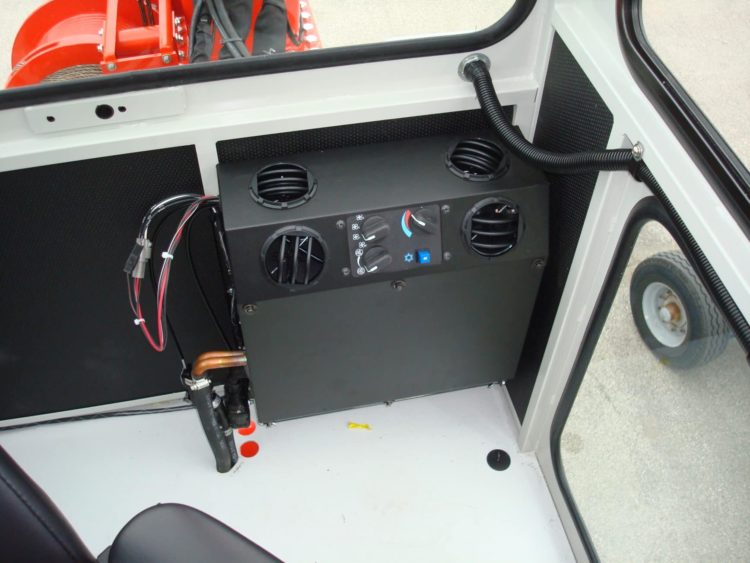

Cab Air Conditioning and Heat

Climate control keeps operators comfortable in both extreme heat and cold conditions.

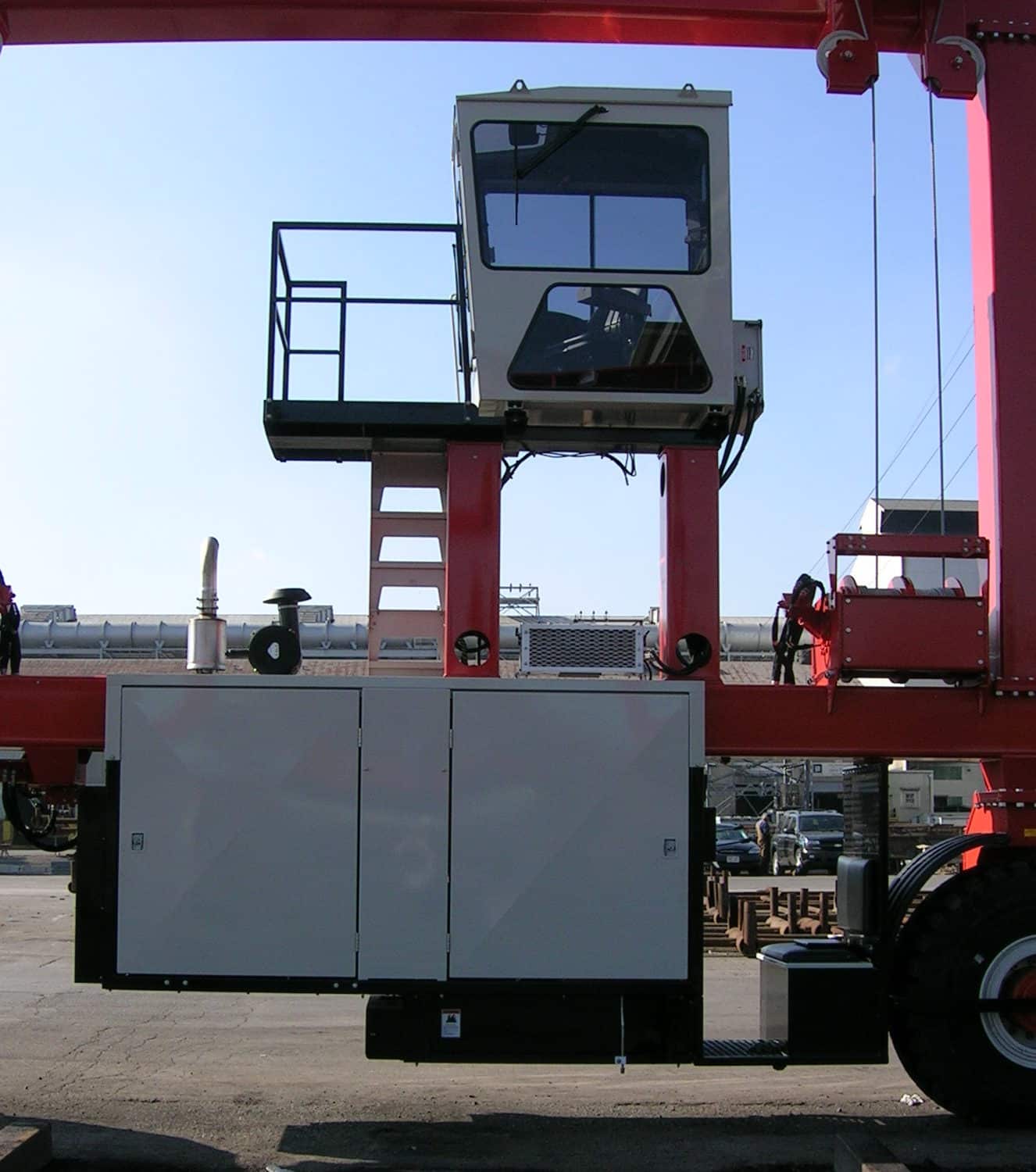

Raised Cab

Provides a higher vantage point for stacking and loading taller product stacks or gondolas.

Automatic Variable Throttle

Automatically adjusts engine speed to match demand, reducing fuel consumption and increasing component life.

Hydraulic Shut-Down

Protects the crane by shutting it down if low hydraulic oil level or high oil temperature is detected.

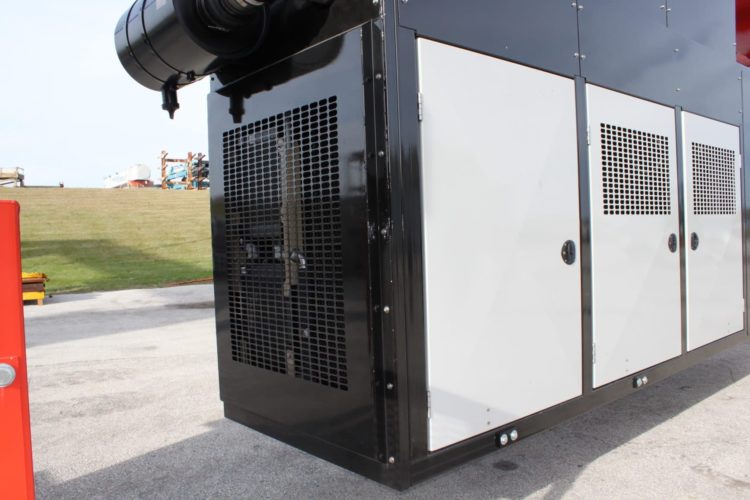

Sound Suppression Kit

Sound absorption panels inside the engine compartment reduce ambient noise around the crane.

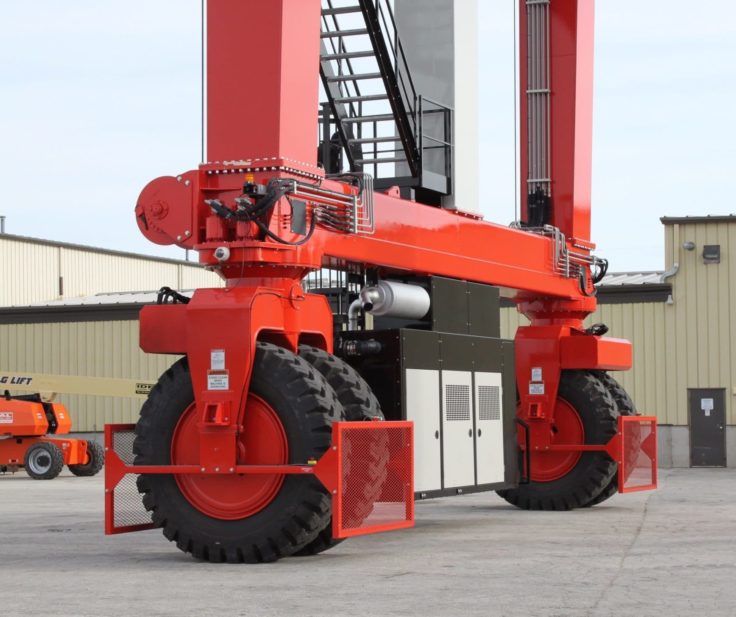

Fenders

Optional wheel fenders help keep mud and dirt off the crane structure and product in muddy yard conditions.

Electronic Load Readout

Provides real-time load weight information for improved lifting accuracy and operational safety.

Specifications Overview

Feature	Value
Popular Lift Capacities	30 / 50 / 70 / 100 / 120 / 150 / 200+ tons
Clear Height	Custom-engineered
Clear Width	Built to load & facility requirements
Steering Modes	2-wheel or AWS (5 electronic steering modes)
Power Options	Diesel, Electric, Propane
Hoist Configurations	Single low-mounted hoist
Drive System	Closed-loop hydrostatic
Control Options	Remote Control (Standard) or operator station
Diagnostics	Onboard + remote
