Gain the advantage for less than you think.

The DB Series rubber-tired gantry crane from Shuttlelift provides a more cost-effective way of doing business through adaptable design and maximum maneuverability.

Shuttlelift DB 30 mobile gantry crane with custom spreader
Shuttlelift double beam mobile gantry crane picking double tee
Shuttlelift DB Series RTG crane working in precast concrete application
Shuttlelift DB double beam rtg crane
Shuttlelift DB 90 with custom spreader for wide variety of lifts

DB Series

Double Beam Rubber-Tired Gantry Cranes

Our DB series currently offers gantry cranes that range from 30 ton to 200 ton (U.S.) capacity and greater. Each DB model is engineered as a unique lifting solution that will solve the toughest material handling challenges you have. Our engineering team will also work closely with you to ensure that your DB series gantry crane meets your needs and surpasses your expectations, and we’ll continue to partner with you as your business moves forward.

DB SERIES FEATURES

See the difference and let Shuttlelift help you grow your business through reduced maintenance costs and maximum machine uptime.

  • Electro-hydraulic Controls
  • Closed Loop-hydrostatic Drive System
  • Wireless Remote Control
  • Remote Diagnostics
  • Steering Slew Bearing
  • Emergency E-Stop Switch
  • Travel Alarms and Strobe Lights
  • Low Mounted Hoists
  • Cordura Hose Cover
  • Powder Coated Steel Tubing
  • Hydraulic Oil Cooler
  • O-ring Face Seal Hydraulic Fittings
  • Enclosed Cab with Defroster & Wipers

(DB Series: Rubber Tired Gantry Crane) All functions of the Shuttlelift crane work through electrical signals sent from the operator control paddles to hydraulic valves.

(DB Series: Rubber Tired Gantry Crane) With closed loop you never have to worry about sacrificing drive power to other machine functions and the hydrostatic system allows the operator unparalleled smooth control.

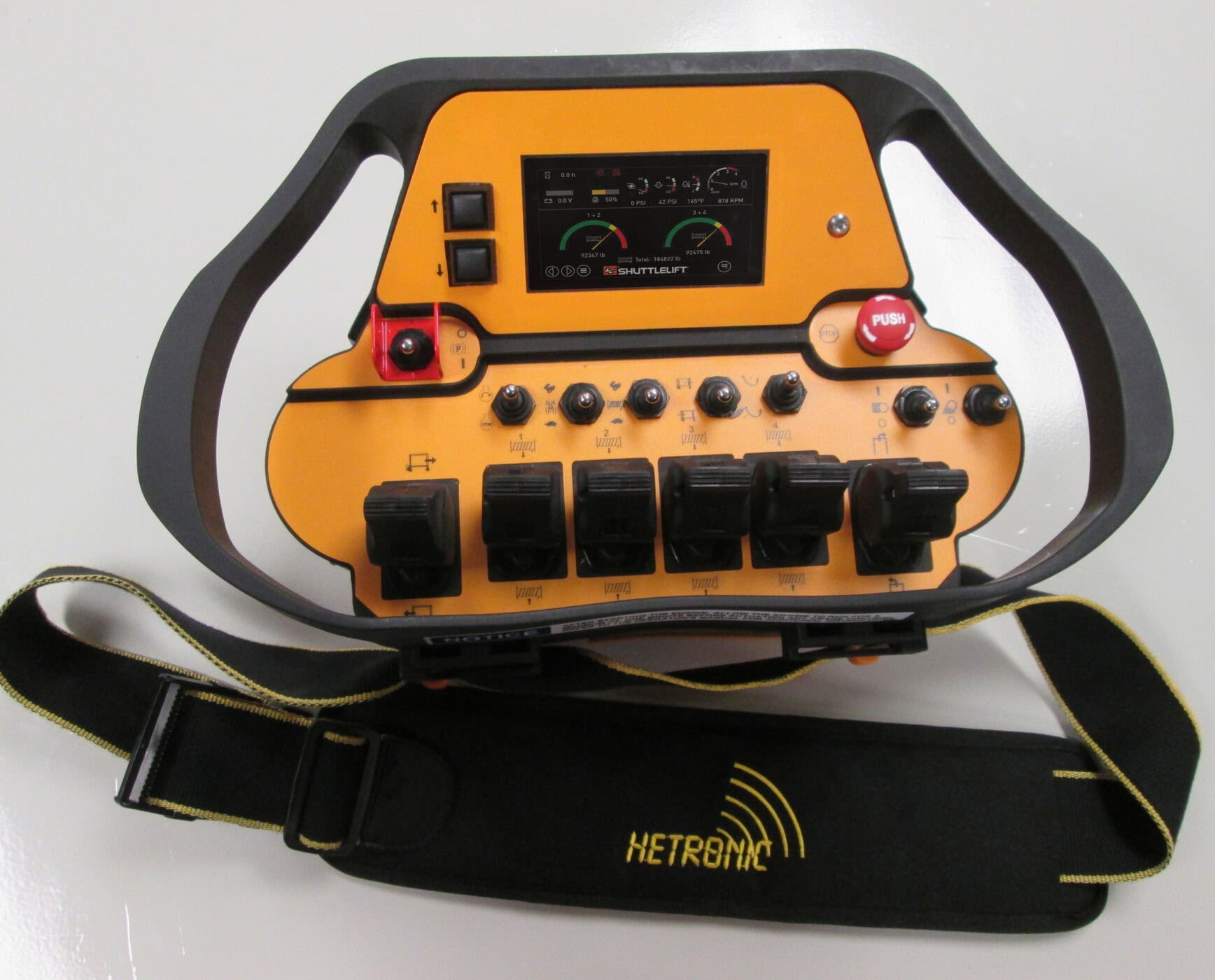

(DB Series: Rubber Tired Gantry Crane) Shuttlelift's Wireless Remote Control increases operator visibility of the load by allowing the operator to be anywhere around the load or work being performed, improving operational safety and ensuring maximum maneuverability.

(DB Series: Rubber Tired Gantry Crane) Shuttlelift’s intelligent remote diagnostics is designed to wirelessly transmit machine information directly to a smartphone or tablet – allowing an offsite technician to troubleshoot any issues and upload a new program if needed – all in the same session.

(DB Series: Rubber Tired Gantry Crane) The steering pivot of the crane is equipped with a slew bearing which simplifies maintenance and service operations – reducing maintenance costs and increasing the life of your machine.

(DB Series: Rubber Tired Gantry Crane) Emergency Shutdown controls are located at each corner of the crane to allow ground personnel around the crane's perimeter to stop the crane if unsafe conditions occur.

(DB Series: Rubber Tired Gantry Crane) Everyone in the work area will know the Shuttlelift is engaged and moving with the flashing strobe lights and smart travel alarms that can adjust decibel levels depending on the surrounding noise.

(DB Series: Rubber Tired Gantry Crane) With hoists mounted to the lower side beam, the operator can easily see the reeving of the wire rope and can perform needed maintenance without the requirement of a man lift.

(DB Series: Rubber Tired Gantry Crane) All hoses are protected by a cordura covering preventing exposure to harsh environments and elements to extend the life of the hose.

(DB Series: Rubber Tired Gantry Crane) Powder Coated Steel Tubing reduces maintenance costs while providing protection from harsh environments and elements.

(DB Series: Rubber Tired Gantry Crane) The Hydraulic Oil Cooler maintains the hydraulic oil temperature allowing the crane to work more efficiently at high duty cycles and in harsh work environments maximizing component life.

(DB Series: Rubber Tired Gantry Crane) Most technologically advanced system available for mobile equipment in minimizing potential leaks.

(DB Series: Rubber Tired Gantry Crane) The spacious enclosed cab provides comfort/protection for the operator in inclement environments and comes equipped with defroster fan and windshield wiper.

Altogether, Shuttlelift has been so efficient and pleasant to work with. There could be another machine in our future; the utility business has expanded so much, there are already discussions about expanding our operation. Darwin Gamm, Sabre Industries
Normally it would have taken us six and a half hours to lift and move a tank. With the new Shuttlelift DB 70, it took us 13 minutes. Kelly Blain, PCL Industrial Services

DB SERIES OPTIONS

Options that boost your cranes performance.

  • Custom Height, Width
  • All-Wheel Electronic Steering
  • Increased Gradeability
  • Dual Traversing Trolleys
  • Auxiliary Powered Hoist
  • Linkageless Steer
  • Electronic Load Readout
  • Cold Start Package
  • 24-Volt Work and Drive Lights
  • Cab Air Conditioning and Heat
  • Raised Cab
  • Automatic Variable Throttle
  • Hydraulic Shut-Down
  • Sound Suppression Kit
  • Fenders

(DB Series: Rubber Tired Gantry Crane) At Shuttlelift, we modify the height and width of our cranes to meet specific customer requirements.

(DB Series: Rubber Tired Gantry Crane) Shuttlelift's All-Wheel Electronic Steering provides maximum flexibility, maneuverability and precision handling while operating in confined spaces. Available steering modes include 2WS 90° Front, 2WS 90° Rear, Crab, Transverse, Carousel and Coordinate.

(DB Series: Rubber Tired Gantry Crane) Shuttlelift provides Increased Gradeability through additional wheel motors that allow its gantry cranes to travel over inclined or uneven surfaces.

(DB Series: Rubber Tired Gantry Crane) The Shuttlelift Dual trolley options provides two pick points per trolley beam. Spacing can be fixed or have powered variable spacing to accommodate specific load pick points.

(DB Series: Rubber Tired Gantry Crane) Auxiliary winch system that can act independently of the main hoists and is perfect for flipping panels and other product.

(DB Series: Rubber Tired Gantry Crane) This reliable, tested and proven system is based on Shuttlelift’s patented electronic all-wheel steering technology. Two wheel linkage less steer removes the steering linkage resulting in less maintenance, wear parts, grease points and requires minimal effort to keep wheel alignment.

(DB Series: Rubber Tired Gantry Crane) Shuttlelift's Electronic Load Readout option provides indication in the cab of the load weight being lifted.

(DB Series: Rubber Tired Gantry Crane) Used on machines that will regularly be started in cold temperatures. The package includes an engine coolant heater, hydraulic oil heater and a battery trickle charger that connects to 110 volt.

(DB Series: Rubber Tired Gantry Crane) Shuttlelift offers a 24-Volt Work and Drive lights option (8 lights) to illuminate work and travel areas in low light conditions to keep operations running through the night.

(DB Series: Rubber Tired Gantry Crane) Whether you have hot summers or cold winters, Shuttlelift offers climate control for your enclosed cab.

(DB Series: Rubber Tired Gantry Crane) Shuttlelift offers a Raised Cab option to give the operator a higher vantage point when lifting tall loads.

(DB Series: Rubber Tired Gantry Crane) With Shuttlelift's Automatic Variable Throttle (AVT), built-in engine programming automatically adjusts engine speed to draw only the power you need to complete the task at hand, significantly reducing fuel consumption and increasing component life.

(DB Series: Rubber Tired Gantry Crane) The Shuttlelift hydraulic Shut-down option protects the crane in the event of low hydraulic oil level or high hydraulic oil temperature, by shutting the crane down to prevent damage to hydraulic components.

(DB Series: Rubber Tired Gantry Crane) Level 1 consists of sound absorption panels mounted inside of the engine compartment to reduce ambient noise around the crane.

(DB Series: Rubber Tired Gantry Crane) Shuttlelift provides optional fenders for the wheels to keep mud and dirt off of the crane's structure in muddy yard conditions.

Our mobile gantry cranes are designed to meet each of our customer’s unique specifications. Check out a preview of how Shuttlelift’s rubber-tired gantry cranes are helping our customers with all of their lifting needs.
