BENEFITS THAT COME WITH OVER 50 YEARS OF ENGINEERING EXPERTISE

The SL series has all the benefits that come with our 50 years of engineering expertise, providing our most economical solution.

Overhead SL gantry crane material handling application

SL Series mobile gantry crane

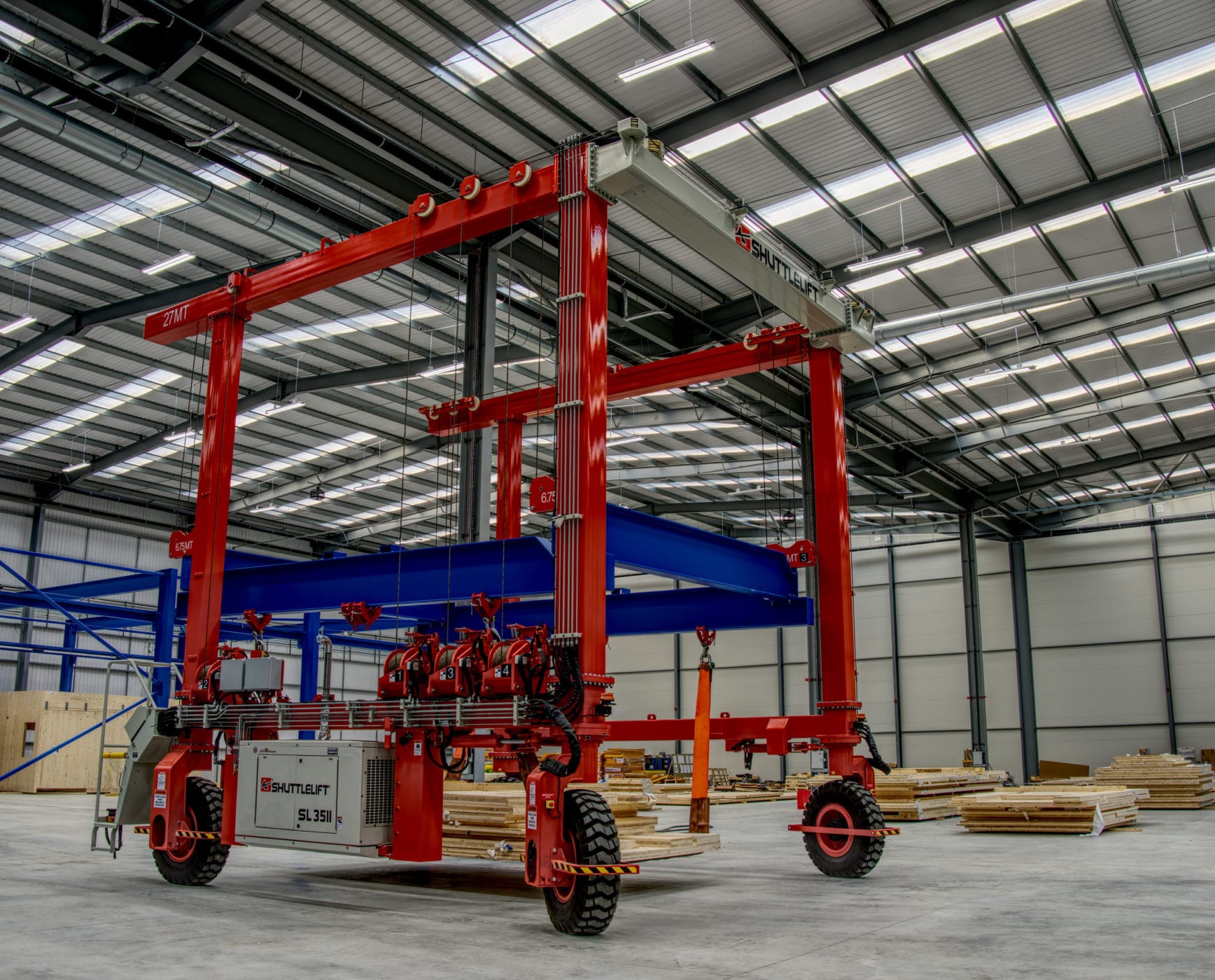

Shuttlelift SL35 gantry crane container handling application in the UK

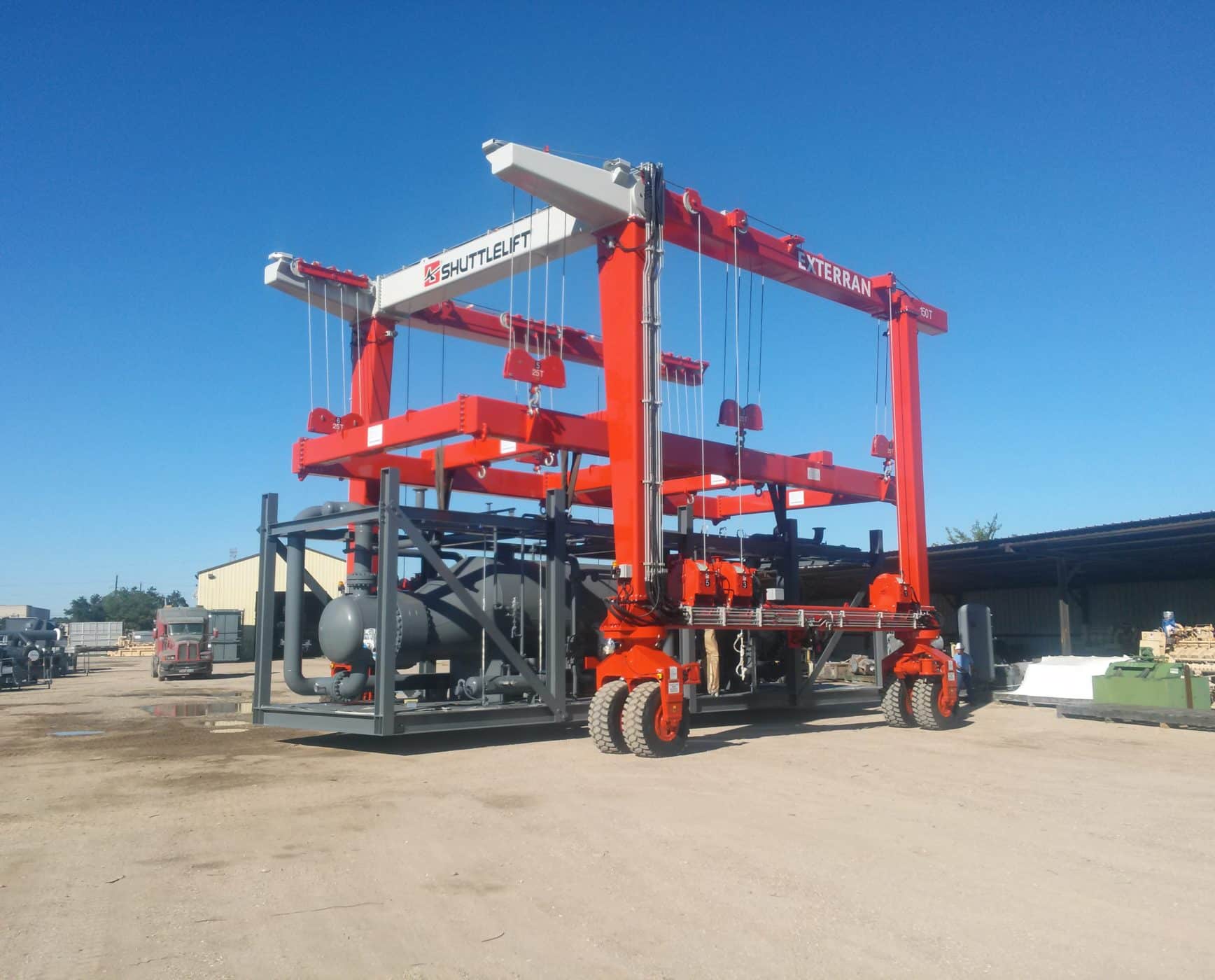

Shuttlelift SL straddle lift gantry crane

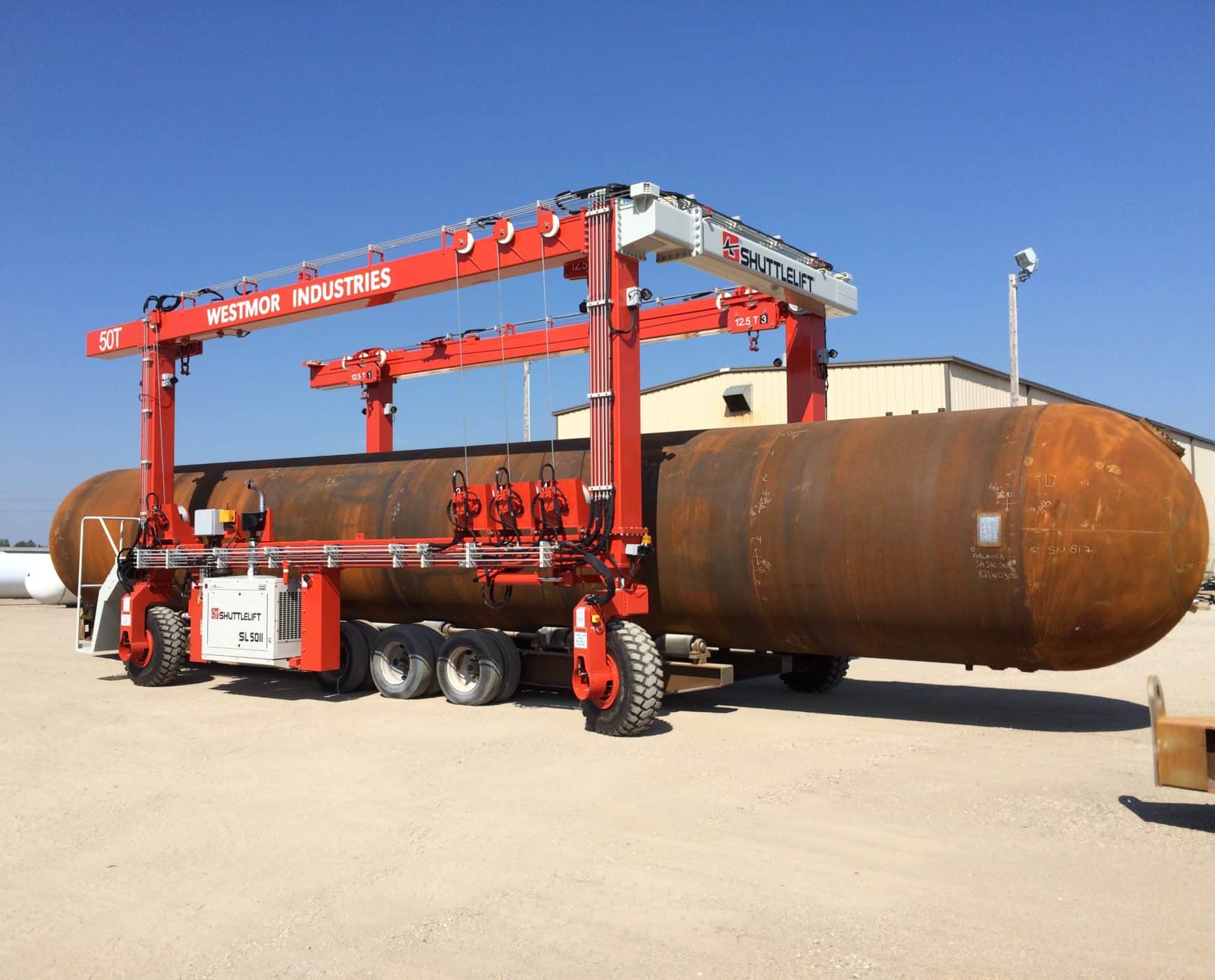

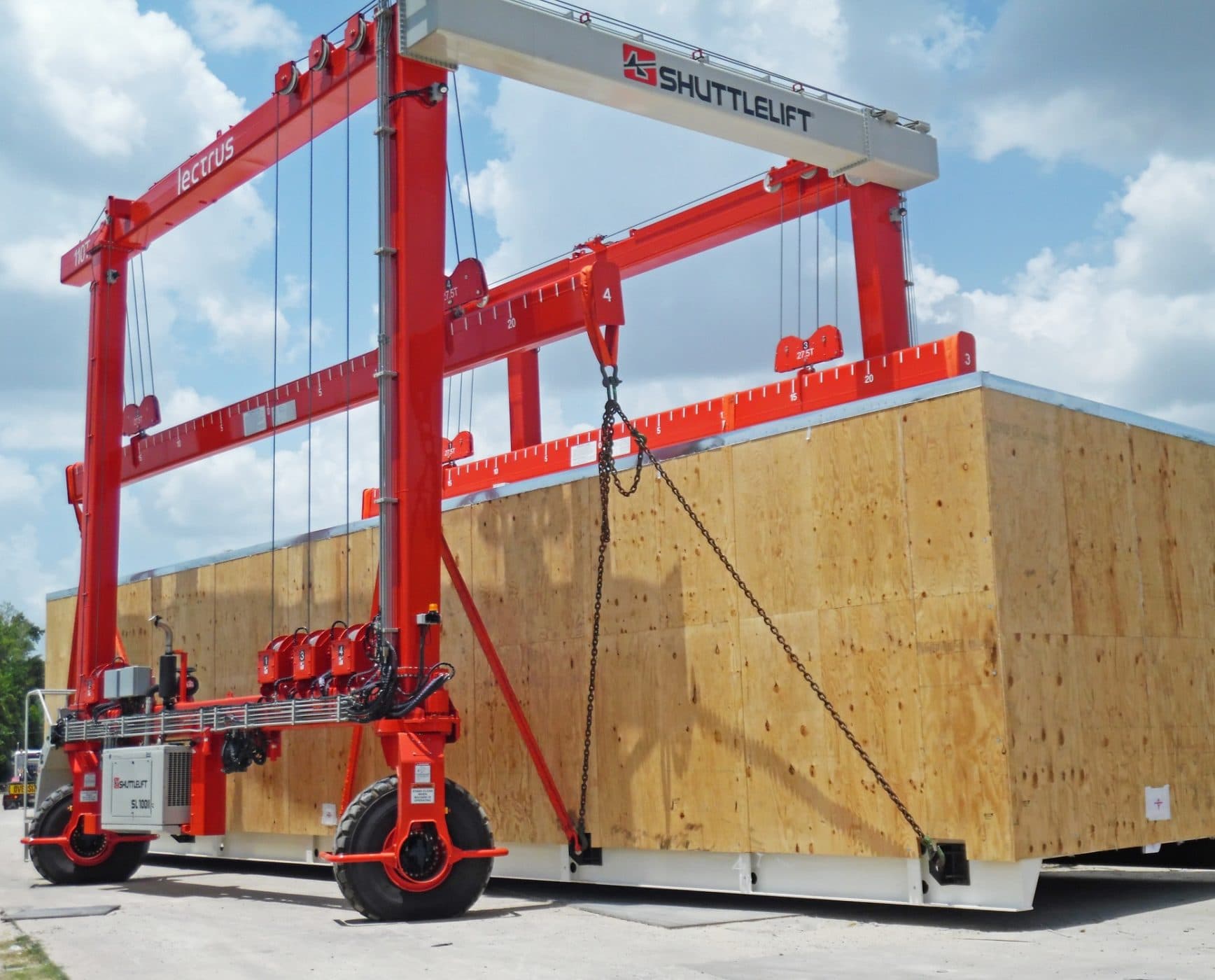

SL Series rubber-tired gantry crane hauling large steel tank

SL Series

Rubber-Tired Gantry Crane

Our SL series overhead cranes range from 15 ton to 1,000 ton (U.S.) capacity and greater. Each SL model is engineered as a unique lifting solution that will solve your material handling challenges. Our engineering team will also work closely with you to ensure that your SL series gantry crane meets your needs and surpasses your expectations, and we’ll continue to partner with you as your business moves forward.

SL SERIES FEATURES

  • Electro-hydraulic Controls
  • Closed Loop-hydrostatic Drive System
  • Remote Diagnostics
  • Steering Slew Bearing
  • Emergency E-Stop Switch
  • Travel Alarms and Strobe Lights
  • Low Mounted Hoists
  • Cordura Hose Cover
  • Powder Coated Steel Tubing
  • O-ring Face Seal Hydraulic Fittings
  • Flange in Top Beam

(SL Series: Rubber Tired Gantry Crane) All functions of the Shuttlelift crane work through electrical signals sent from the operator control paddles to hydraulic valves.

Rubber Tired Gantry Crane Shuttle Lift with Tires

(SL Series: Rubber Tired Gantry Crane) With closed loop you never have to worry about sacrificing drive power to other machine functions and the hydrostatic system allows the operator unparalleled smooth control.

Mobile Rubber Tired Gantry Crane with Remote Service

(SL Series: Rubber Tired Gantry Crane) Shuttlelift’s intelligent remote diagnostics include a Bluetooth dongle that is designed to transmit wireless diagnostics from the Shuttlelift directly to a smartphone or tablet - allowing an offsite technician to view a machine while operating, troubleshoot the issue, and upload a new program if needed – all in the same session.

SL gantry crane designed for the conditions

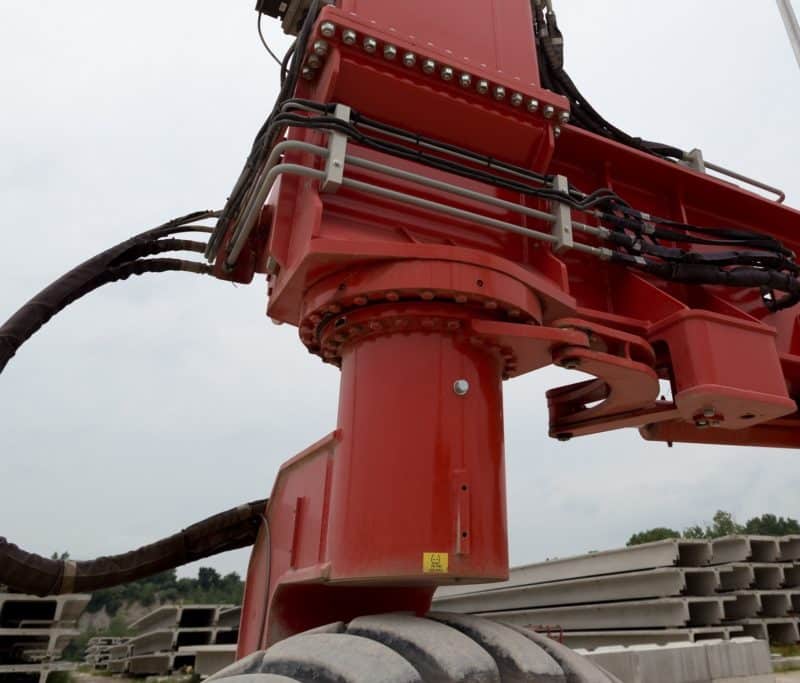

(SL Series: Rubber Tired Gantry Crane) The steering pivot of the crane is equipped with a slew bearing which simplifies maintenance and service operations – reducing maintenance costs and increasing the life of your machine.

Crane Safety with Stop Button

(SL Series: Rubber Tired Gantry Crane) Emergency Shutdown controls are located at each corner of the crane to allow ground personnel around the crane's perimeter to stop the crane if unsafe conditions occur.

Gantry Crane with Safety Lights and Alarms

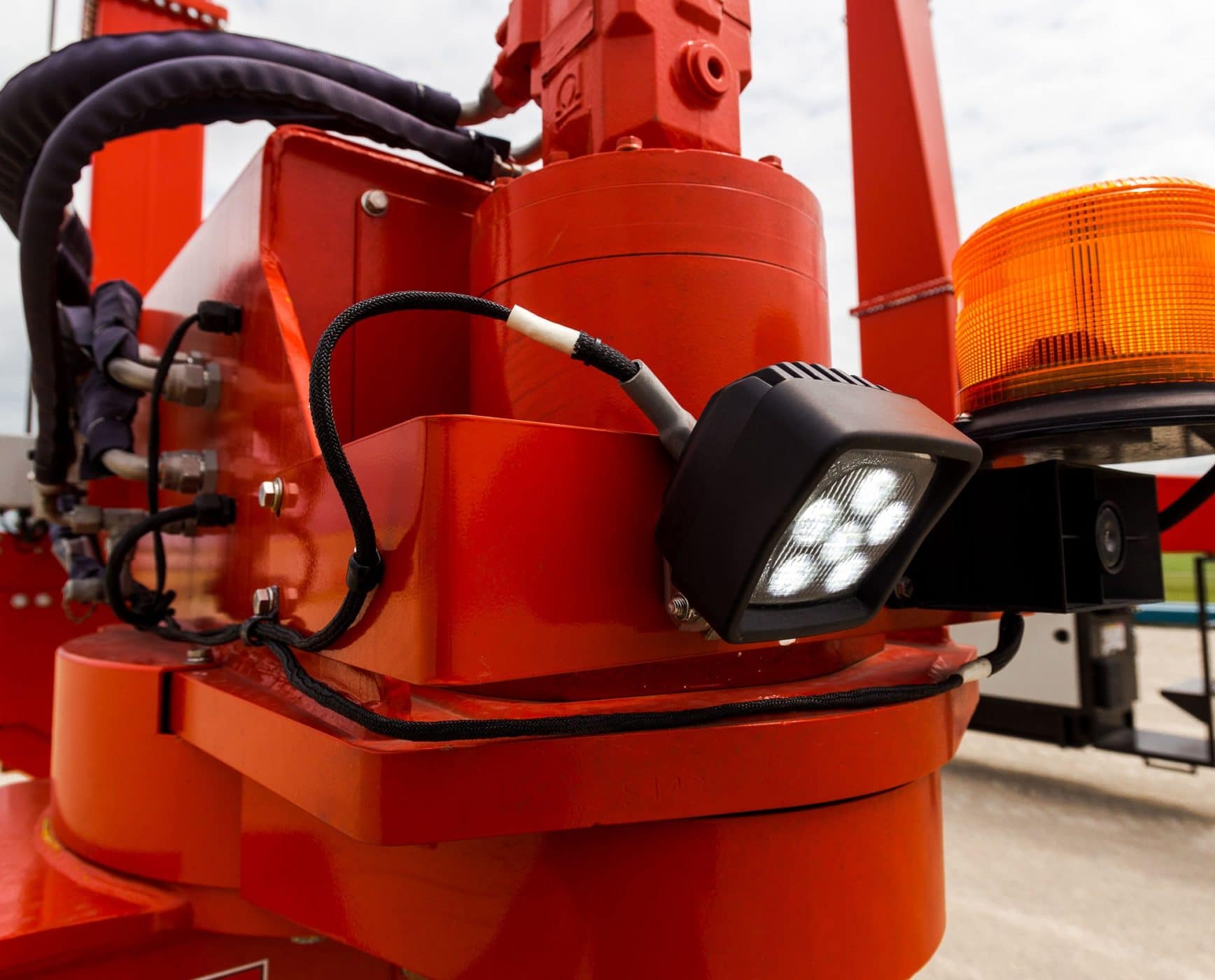

(SL Series: Rubber Tired Gantry Crane) Everyone in the work area will know the Shuttlelift is engaged and moving with the flashing strobe lights and smart travel alarms that can adjust decibel levels depending on the surrounding noise.

Shuttlelift Gantry Crane Machine Close-Up

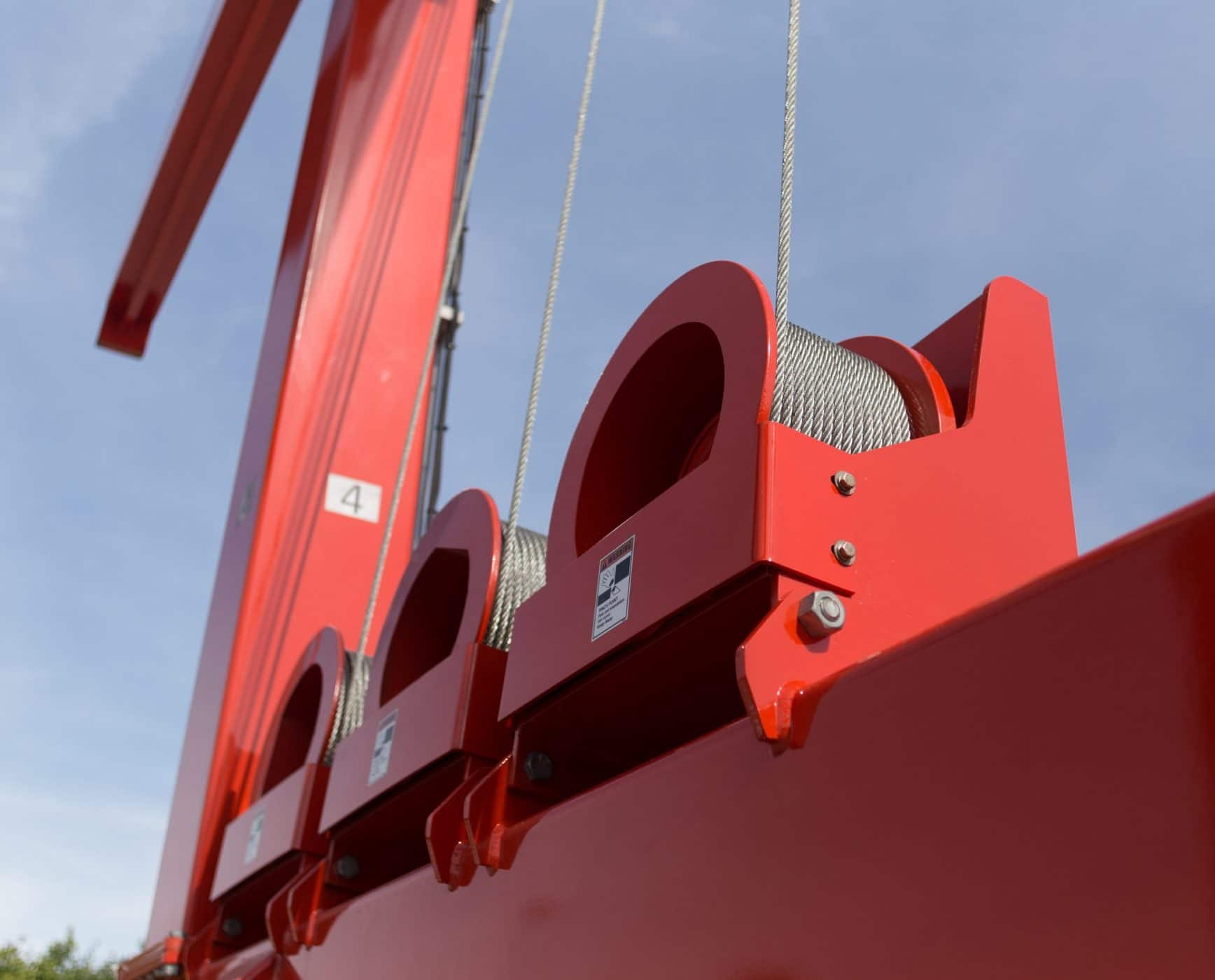

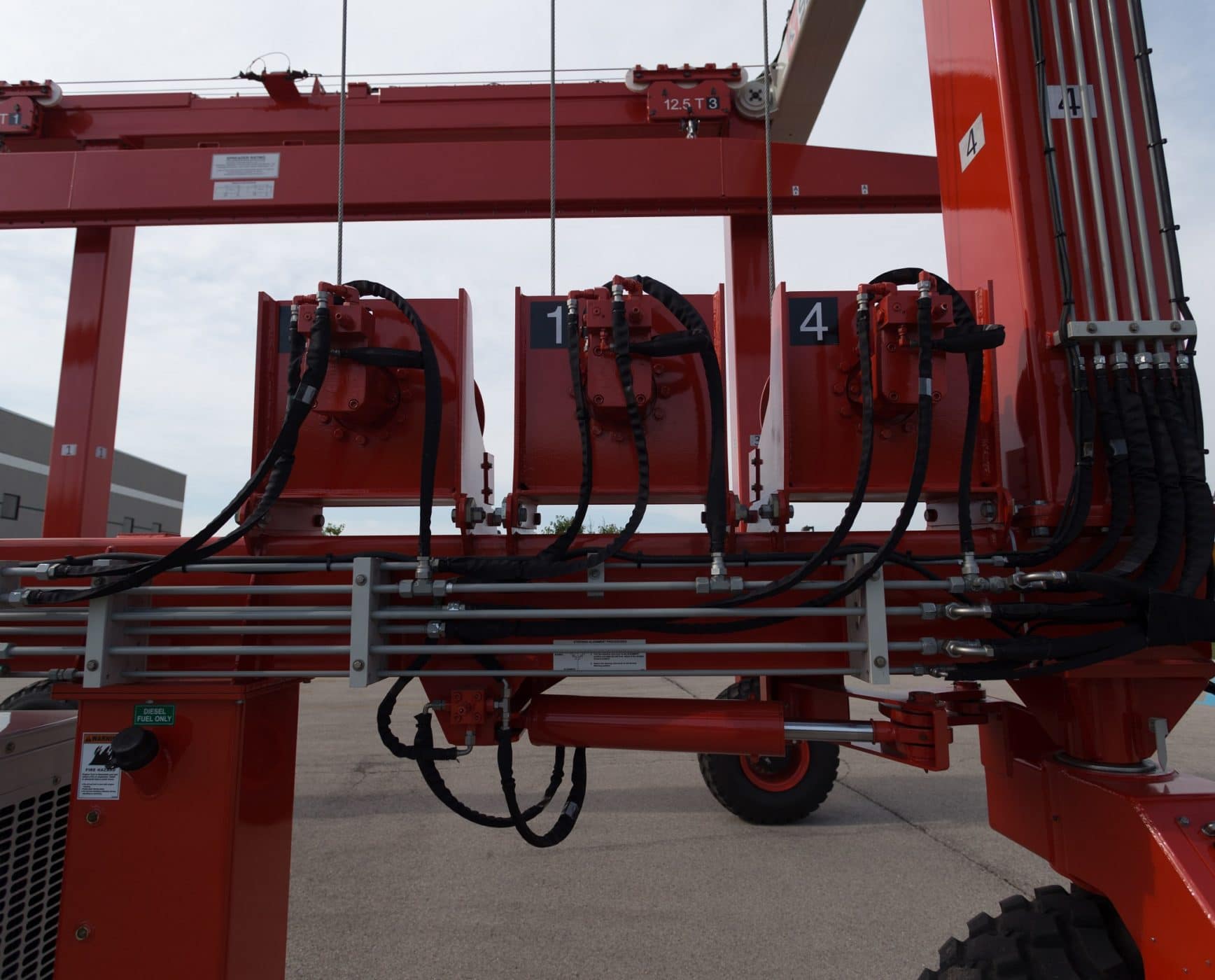

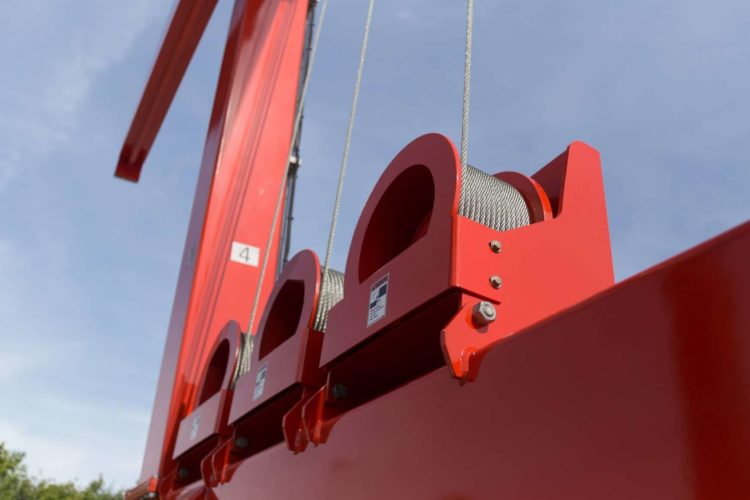

(SL Series: Rubber Tired Gantry Crane) With hoists mounted to the lower side beam, the operator can easily see the reeving of the wire rope and can perform needed maintenance without the requirement of a man lift.

Zoom on Shuttlelift Machine Hoses

(SL Series: Rubber Tired Gantry Crane) All hoses are protected by a cordura covering preventing exposure to harsh environments and elements to extend the life of your machine.

Highest Quality Industrial Crane

(SL Series: Rubber Tired Gantry Crane) Powder Coated Steel Tubing reduces maintenance costs while providing protection from harsh environments and elements.

Shuttlelift DB series Hose Close-Up

(SL Series: Rubber Tired Gantry Crane) Most technologically advanced system available for mobile equipment in minimizing potential leaks.

SL gantry crane with spreaders

(SL Series: Rubber Tired Gantry Crane) Provides greater versatility with an easy reconfiguration of the crane dimensions if there is a need for more clear width in the future.

We have very good experience with the Shuttletlifts, they are very durable, reliable, and very easy to operate! Allen Kung, Kiewit Corporation

SL SERIES OPTIONS

  • Custom Height, Width
  • All-Wheel Electronic Steering
  • Increased Gradeability
  • Wireless Remote Control
  • Linkageless Steer
  • Electronic Load Readout
  • Cold Start Package
  • 24-Volt Work and Drive Lights
  • Block Adjustment
  • 2-Speed Hoist
  • Enclosed Cab with Defroster & Wipers
  • Cab Air Conditioning and Heat
  • Automatic Variable Throttle
  • Hydraulic Shut-Down
  • Sound Suppression Kit
  • Fenders
Best Custom Crane for Industrial Applications

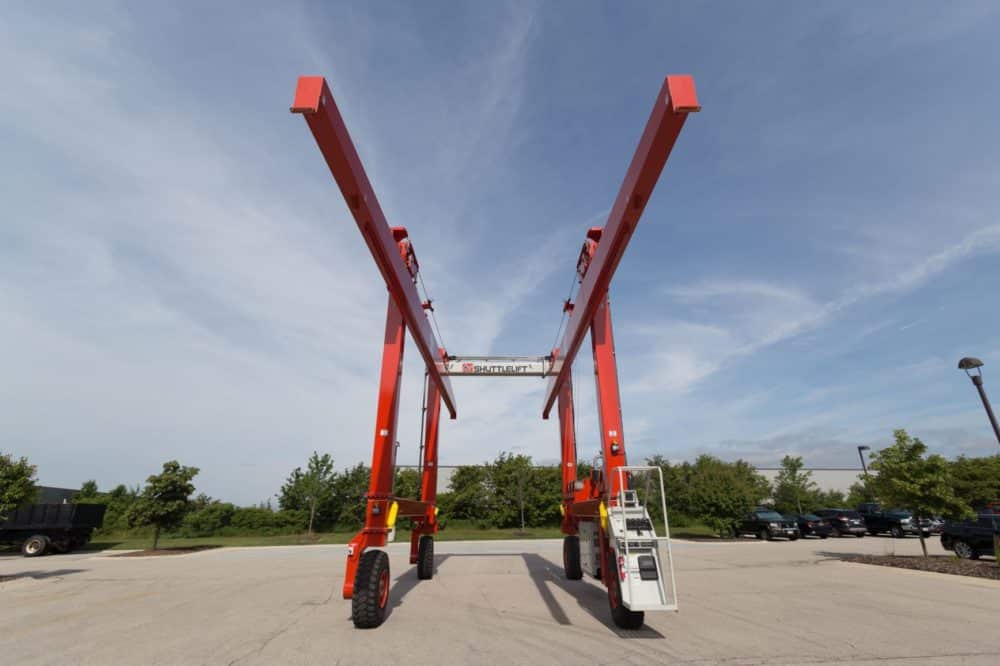

(SL Series: Rubber Tired Gantry Crane) At Shuttlelift, we modify the height and width of our cranes to meet specific customer requirements.

Overhead SL gantry crane material handling application

(SL Series: Rubber Tired Gantry Crane) Shuttlelift's All-Wheel Electronic Steering provides maximum flexibility, maneuverability and precision handling while operating in confined spaces. Available steering modes include 2WS 90° Front, 2WS 90° Rear, Crab, Transverse, Carousel and Coordinate.

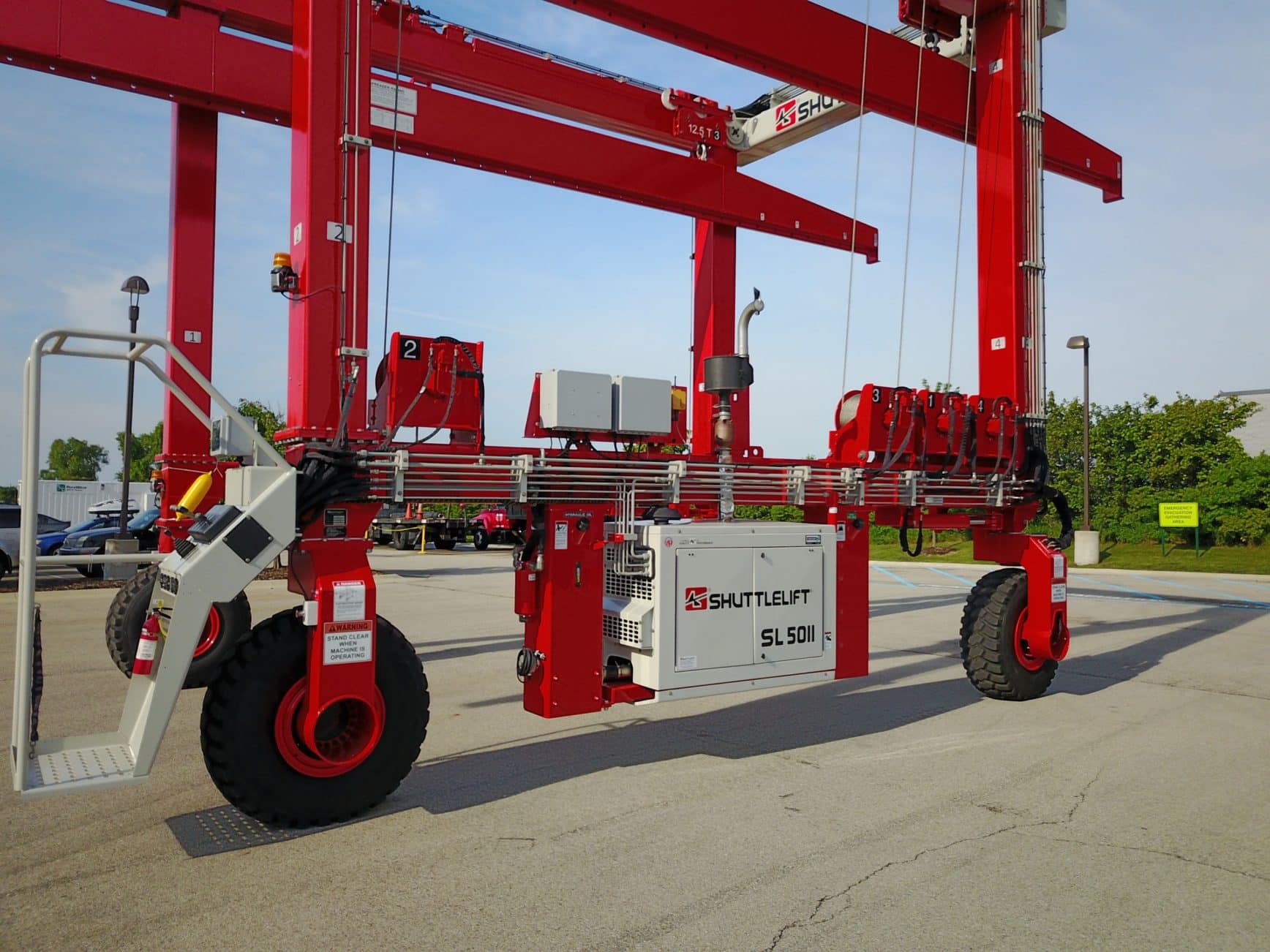

SL 50II Mobile Gantry Crane with Open Cab

(SL Series: Rubber Tired Gantry Crane) Shuttlelift provides Increased Gradeability through additional wheel motors that allow its gantry cranes to travel over inclined or uneven surfaces.

Remote for Cranes with Screen

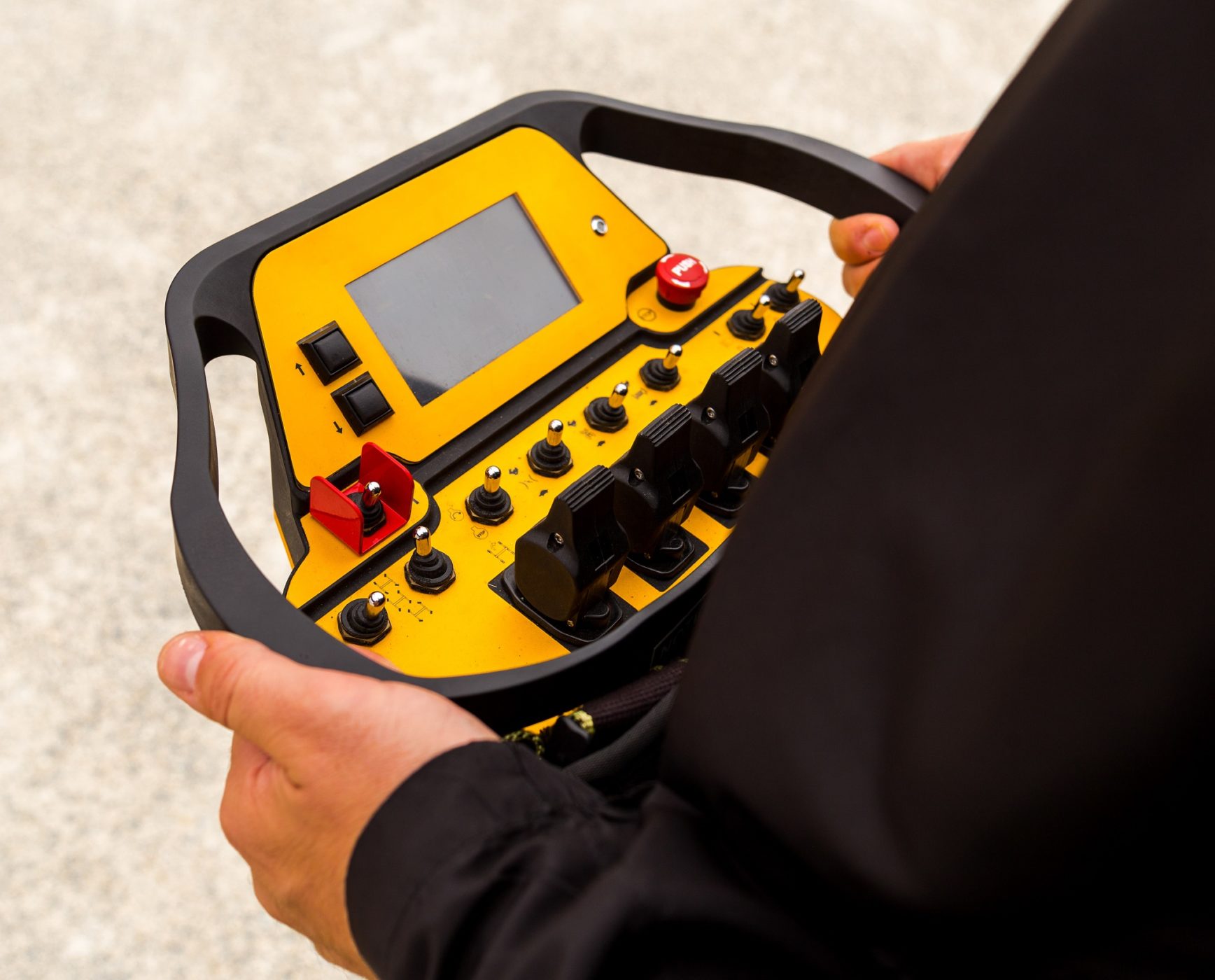

(SL Series: Rubber Tired Gantry Crane) Shuttlelift's Wireless Remote Control increases operator visibility of the load by allowing the operator to be anywhere around the load or work being performed, improving operational safety and ensuring maximum maneuverability.

(SL Series: Rubber Tired Gantry Crane) This reliable, tested and proven system is based off Shuttlelift’s patented electronic all-wheel steering technology. Two wheel linkage less steer removes the steering linkage resulting in less maintenance, wear parts, grease points and requires minimal effort to keep wheel alignment.

Display MD4 Readout DB Rubber Tired Crane

(SL Series: Rubber Tired Gantry Crane) Shuttlelift's Electronic Load Readout option provides indication in the cab of the load weight being lifted.

cold weather start package for Shuttlelift cranes

(SL Series: Rubber Tired Gantry Crane) Used on machines that will regularly be started in cold temperatures. The package includes an engine coolant heater, hydraulic oil heater and a battery trickle charger that connects to 110 volt.

new crane sheaves

(SL Series: Rubber Tired Gantry Crane) Shuttlelift offers a 24-Volt Work and Drive lights option (8 lights) to illuminate work and travel areas in low light conditions to keep operations running through the night.

Close Shuttlelift Steel Beam

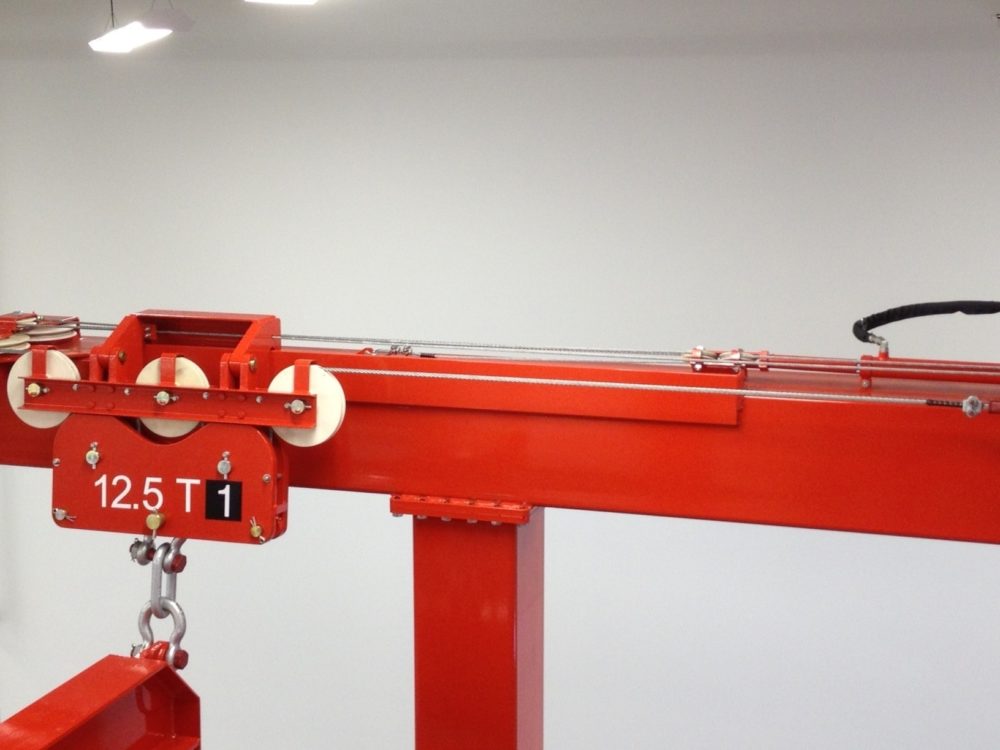

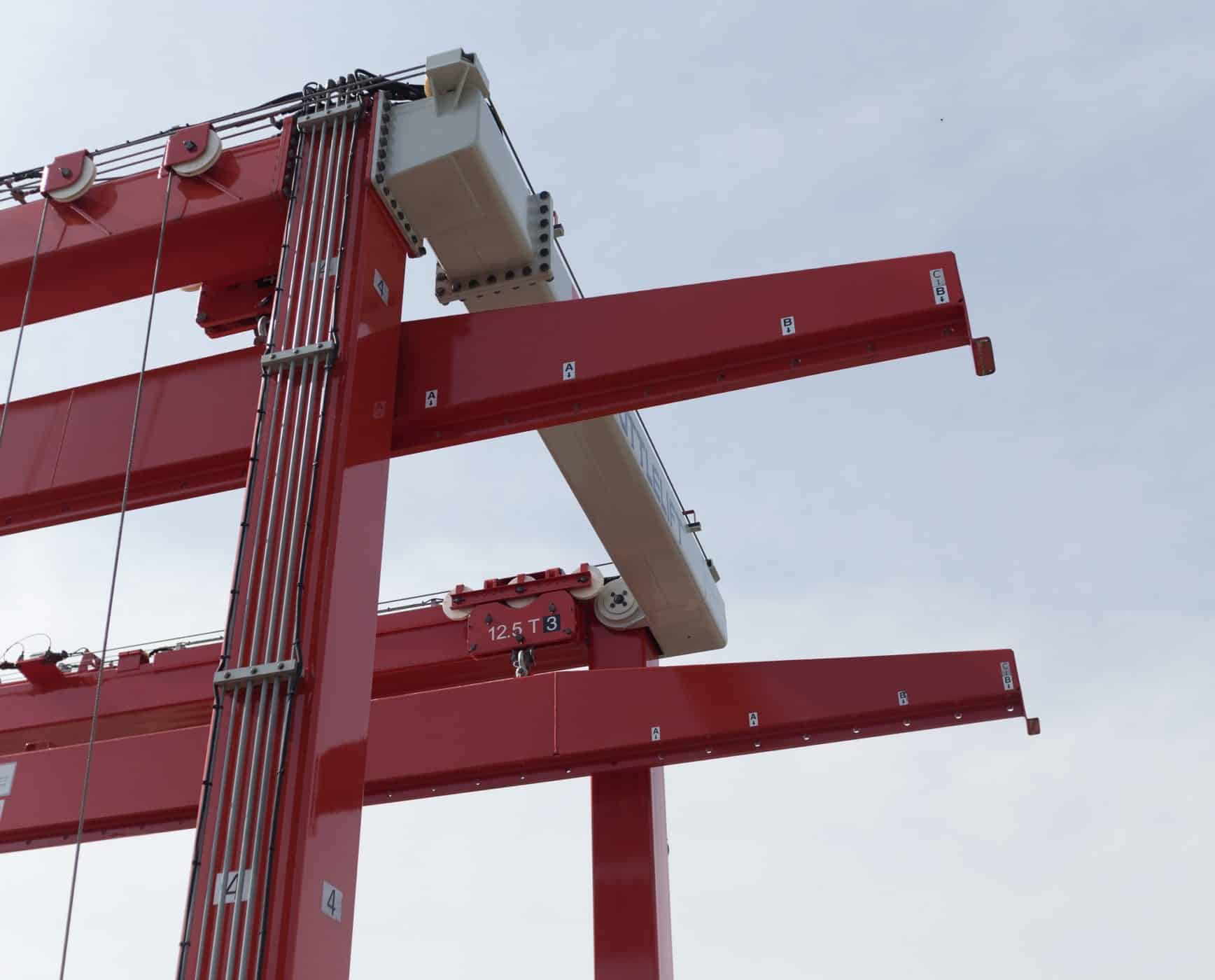

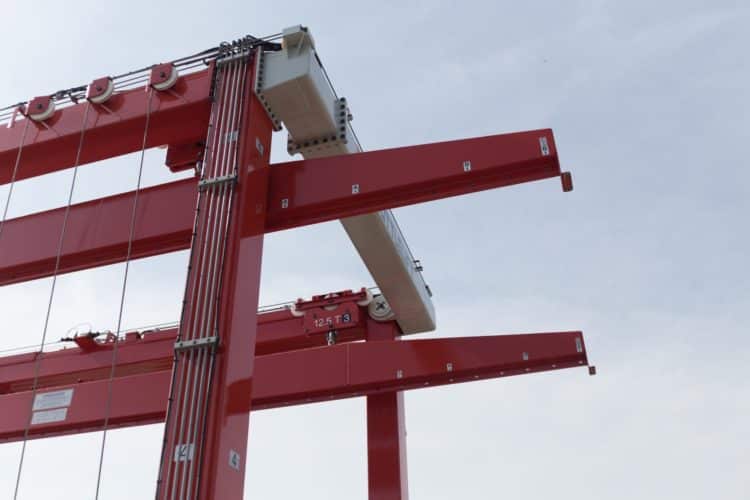

(SL Series: Rubber Tired Gantry Crane) This option provides versatile longitudinal pick point locations with powered movement to accommodate a variety of different loads.

SL Series Wire Rope on Crane

(SL Series: Rubber Tired Gantry Crane) Gives the operator increased lifting speed for more efficiency when your machine is in high demand.

Shuttlelift crane cab with air conditioning and heat

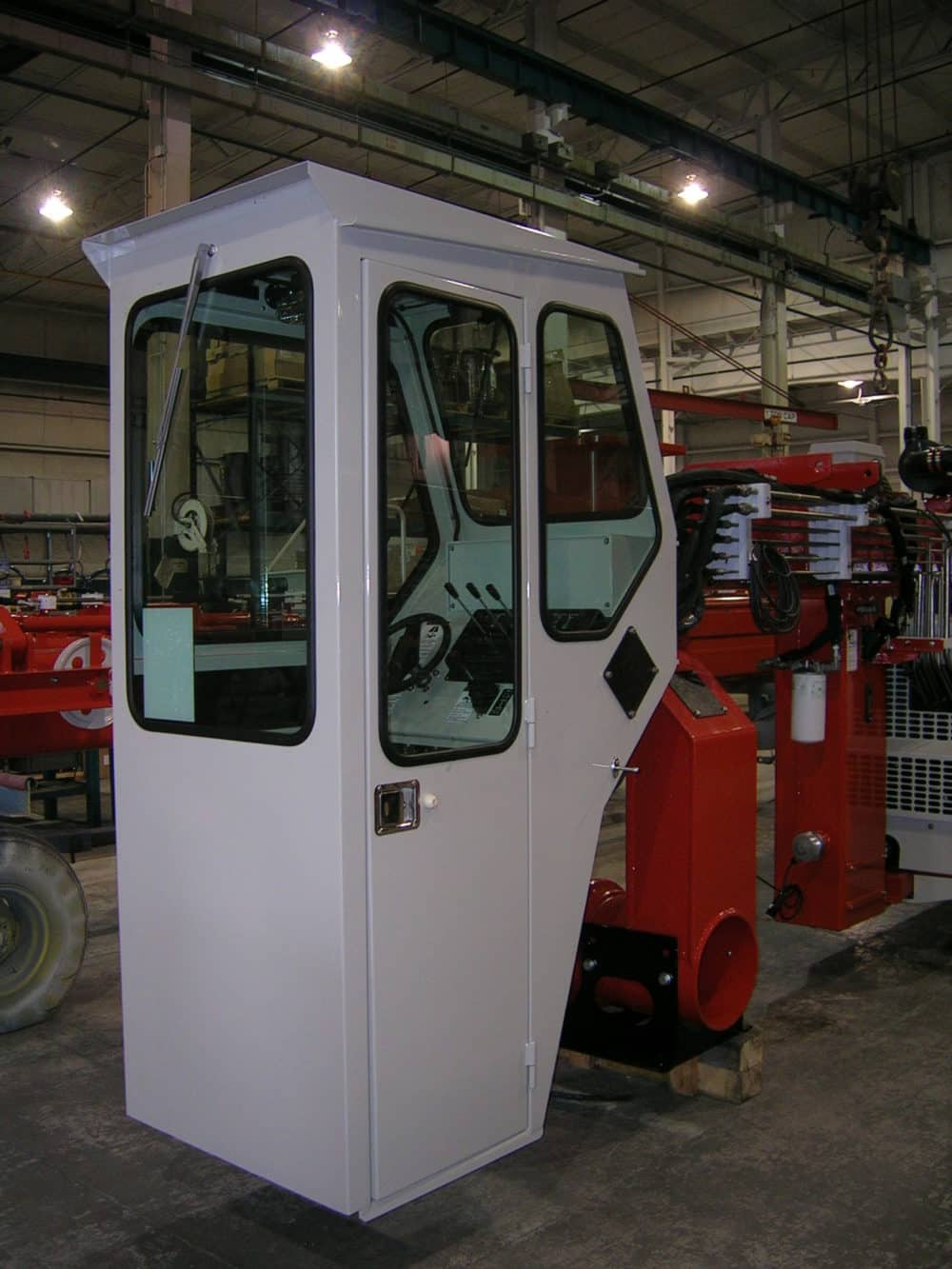

(SL Series: Rubber Tired Gantry Crane) The Enclosed Cab option provides comfort/protection for the operator in inclement environments. This option comes equipped with heater, defrost fan, and windshield wiper.

Comfort Control for Crane Operators

(SL Series: Rubber Tired Gantry Crane) Whether you have hot summers or cold winters, Shuttlelift offers climate control for your enclosed cab.

Mobile Gantry Crane for Lifting Engine

(SL Series: Rubber Tired Gantry Crane) With Shuttlelift's Automatic Variable Throttle (AVT), built-in engine programming automatically adjusts engine speed to draw only the power you need to complete the task at hand, significantly reducing fuel consumption, and increasing component life.

Crane with optional hydraulic shutdown

(SL Series: Rubber Tired Gantry Crane) The Shuttlelift hydraulic Shut-down option protects the crane in the event of low hydraulic oil level or high hydraulic oil temperature, by shutting the crane down to prevent damage to hydraulic components.

Rubber Tire Gantry Crane Engine Close Up

(SL Series: Rubber Tired Gantry Crane) Level 1 consists of sound absorption panels mounted inside of the engine compartment to reduce ambient noise around the crane.

Industrial Tires on Crane for Material Handling

(SL Series: Rubber Tired Gantry Crane) Shuttlelift provides optional fenders for the wheels to keep mud and dirt off of the crane's structure in muddy yard conditions.

Our mobile gantry cranes are designed to meet each of our customer’s unique specifications. Check out a preview of how Shuttlelift’s rubber tired gantry cranes are helping our customers with all of their lifting needs.
